3F2A

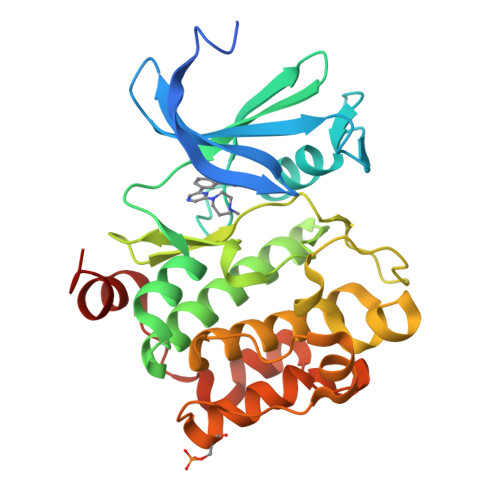

Crystal structure of human Pim-1 in complex with DAPPA


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free: 0.282
  • R-Value Work: 0.256

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Hit to lead account of the discovery of a new class of inhibitors of Pim kinases and crystallographic studies revealing an unusual kinase binding mode.

Qian, K.Wang, L.Cywin, C.L.Farmer, B.T.Hickey, E.Homon, C.Jakes, S.Kashem, M.A.Lee, G.Leonard, S.Li, J.Magboo, R.Mao, W.Pack, E.Peng, C.Prokopowicz, A.Welzel, M.Wolak, J.Morwick, T.

(2009) J Med Chem 52: 1814-1827

  • DOI: https://doi.org/10.1021/jm801242y
  • Primary Citation of Related Structures:
    3F2A

  • PubMed Abstract:

    A series of inhibitors of Pim-2 kinase identified by high-throughput screening is described. Details of the hit validation and lead generation process and structure-activity relationship (SAR) studies are presented. Disclosure of an unconventional binding mode for 1, as revealed by X-ray crystallography using the highly homologous Pim-1 protein, is also presented, and observed binding features are shown to correlate with the Pim-2 SAR. While highly selective within the kinase family, the series shows similar potency for both Pim-1 and Pim-2, which was expected on the basis of homology, but unusual in light of reports in the literature documenting a bias for Pim-1. A rationale for these observations based on Pim-1 and Pim-2 K(M(ATP)) values is suggested. Some interesting cross reactivity with casein kinase-2 was also identified, and structural features which may contribute to the association are discussed.


  • Organizational Affiliation

    Boehringer Ingelheim Pharmaceuticals, Inc, Ridgefield, Connecticut 06801-0368, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Proto-oncogene serine/threonine-protein kinase Pim-1300Homo sapiensMutation(s): 0
Gene Names: PIM1
EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for P11309 (Homo sapiens)
Explore P11309
Go to UniProtKB:  P11309
PHAROS:  P11309
GTEx:  ENSG00000137193
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP11309
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
985
Query on 985

Download Ideal Coordinates CCD File
B [auth A](2E)-3-{3-[6-(4-methyl-1,4-diazepan-1-yl)pyrazin-2-yl]phenyl}prop-2-enoic acid
C19 H22 N4 O2
DTBFDAJNODVUMF-VOTSOKGWSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
C [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
SEP
Query on SEP
A
L-PEPTIDE LINKINGC3 H8 N O6 PSER
Binding Affinity Annotations
IDSourceBinding Affinity
985 BindingDB:  3F2A IC50: 57 (nM) from 1 assay(s)
PDBBind:  3F2A IC50: 57 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free: 0.282
  • R-Value Work: 0.256
  • Space Group: P 65
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 96.06α = 90
b = 96.06β = 90
c = 80.53γ = 120
Software Package:
Software NamePurpose
CrystalCleardata collection
AMoREphasing
CNXrefinement
HKL-2000data reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

  • Released Date: 2009-03-10
  • Deposition Author(s): Qian, K.

Revision History  (Full details and data files)

  • Version 1.0: 2009-03-10
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2023-12-27
    Changes: Data collection, Database references, Derived calculations
  • Version 1.3: 2024-10-16
    Changes: Structure summary
