5IV4 | pdb_00005iv4

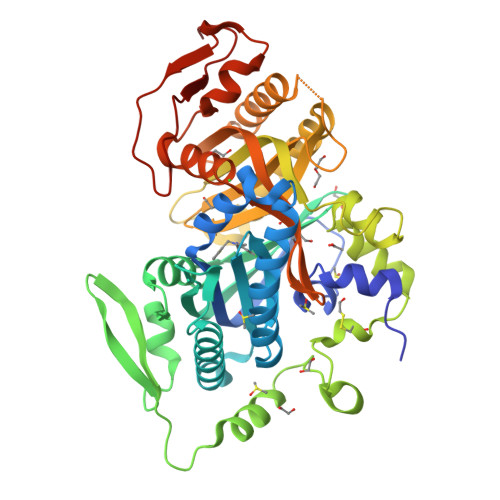

Crystal structure of the human soluble adenylyl cyclase in complex with the allosteric inhibitor LRE1


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.79 Å
  • R-Value Free:
    0.206 (Depositor), 0.210 (DCC)
  • R-Value Work:
    0.160 (Depositor), 0.170 (DCC)
  • R-Value Observed:
    0.162 (Depositor)

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted LRIClick on this verticalbar to view details

This is version 1.4 of the entry. See complete history


Literature

Discovery of LRE1 as a specific and allosteric inhibitor of soluble adenylyl cyclase.

Ramos-Espiritu, L.Kleinboelting, S.Navarrete, F.A.Alvau, A.Visconti, P.E.Valsecchi, F.Starkov, A.Manfredi, G.Buck, H.Adura, C.Zippin, J.H.van den Heuvel, J.Glickman, J.F.Steegborn, C.Levin, L.R.Buck, J.

(2016) Nat Chem Biol 12: 838-844

  • DOI: https://doi.org/10.1038/nchembio.2151
  • Primary Citation of Related Structures:
    5IV3, 5IV4

  • PubMed Abstract:

    The prototypical second messenger cAMP regulates a wide variety of physiological processes. It can simultaneously mediate diverse functions by acting locally in independently regulated microdomains. In mammalian cells, two types of adenylyl cyclase generate cAMP: G-protein-regulated transmembrane adenylyl cyclases and bicarbonate-, calcium- and ATP-regulated soluble adenylyl cyclase (sAC). Because each type of cyclase regulates distinct microdomains, methods to distinguish between them are needed to understand cAMP signaling. We developed a mass-spectrometry-based adenylyl cyclase assay, which we used to identify a new sAC-specific inhibitor, LRE1. LRE1 bound to the bicarbonate activator binding site and inhibited sAC via a unique allosteric mechanism. LRE1 prevented sAC-dependent processes in cellular and physiological systems, and it will facilitate exploration of the therapeutic potential of sAC inhibition.


  • Organizational Affiliation

    Department of Pharmacology, Weill Cornell Medical College, New York, New York, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Adenylate cyclase type 10475Homo sapiensMutation(s): 0
Gene Names: ADCY10SAC
EC: 4.6.1.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q96PN6 (Homo sapiens)
Explore Q96PN6
Go to UniProtKB:  Q96PN6
PHAROS:  Q96PN6
GTEx:  ENSG00000143199
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96PN6
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 7 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
LRI
Query on LRI

Download Ideal Coordinates CCD File
B [auth A]6-chloro-N~4~-cyclopropyl-N~4~-[(thiophen-2-yl)methyl]pyrimidine-2,4-diamine
C12 H13 Cl N4 S
PDWZXKSZLRVSEH-UHFFFAOYSA-N
PEG
Query on PEG

Download Ideal Coordinates CCD File
O [auth A]DI(HYDROXYETHYL)ETHER
C4 H10 O3
MTHSVFCYNBDYFN-UHFFFAOYSA-N
GOL
Query on GOL

Download Ideal Coordinates CCD File
P [auth A]GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
DMS
Query on DMS

Download Ideal Coordinates CCD File
J [auth A],
K [auth A],
L [auth A],
M [auth A]
DIMETHYL SULFOXIDE
C2 H6 O S
IAZDPXIOMUYVGZ-UHFFFAOYSA-N
EDO
Query on EDO

Download Ideal Coordinates CCD File
E [auth A],
F [auth A],
G [auth A],
H [auth A],
I [auth A]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
ACT
Query on ACT

Download Ideal Coordinates CCD File
C [auth A],
D [auth A]
ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
CL
Query on CL

Download Ideal Coordinates CCD File
N [auth A]CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
CME
Query on CME
A
L-PEPTIDE LINKINGC5 H11 N O3 S2CYS
Binding Affinity Annotations
IDSourceBinding Affinity
LRI BindingDB:  5IV4 IC50: min: 1500, max: 6300 (nM) from 3 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.79 Å
  • R-Value Free:  0.206 (Depositor), 0.210 (DCC)
  • R-Value Work:  0.160 (Depositor), 0.170 (DCC)
  • R-Value Observed: 0.162 (Depositor)
Space Group: P 63
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 99.298α = 90
b = 99.298β = 90
c = 99.386γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
Cootmodel building
MOLREPphasing
XSCALEdata scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted LRIClick on this verticalbar to view details

Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
German Research FoundationGermanySTE1701/11

Revision History  (Full details and data files)

  • Version 1.0: 2016-08-17
    Type: Initial release
  • Version 1.1: 2016-08-31
    Changes: Database references
  • Version 1.2: 2016-09-28
    Changes: Database references
  • Version 1.3: 2022-11-30
    Changes: Author supporting evidence, Database references, Source and taxonomy, Structure summary
  • Version 1.4: 2024-11-20
    Changes: Data collection, Structure summary
