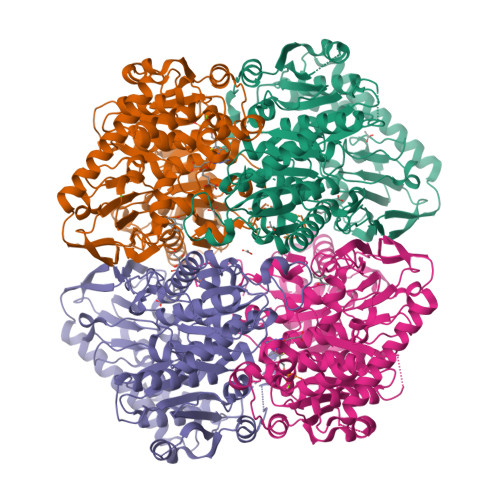

6O0G

M.tb MenD bound to Intermediate I and Inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free: 0.241
  • R-Value Work: 0.193
  • R-Value Observed: 0.195

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Allosteric regulation of menaquinone (vitamin K2) biosynthesis in the human pathogenMycobacterium tuberculosis.

Bashiri, G.Nigon, L.V.Jirgis, E.N.M.Ho, N.A.T.Stanborough, T.Dawes, S.S.Baker, E.N.Bulloch, E.M.M.Johnston, J.M.

(2020) J Biol Chem 295: 3759-3770

  • DOI: https://doi.org/10.1074/jbc.RA119.012158
  • Primary Citation of Related Structures:
    6O04, 6O0G, 6O0J, 6O0N

  • PubMed Abstract:

    Menaquinone (vitamin K 2 ) plays a vital role in energy generation and environmental adaptation in many bacteria, including the human pathogen Mycobacterium tuberculosis ( Mtb ). Although menaquinone levels are known to be tightly linked to the cellular redox/energy status of the cell, the regulatory mechanisms underpinning this phenomenon are unclear. The first committed step in menaquinone biosynthesis is catalyzed by MenD, a thiamine diphosphate-dependent enzyme comprising three domains. Domains I and III form the MenD active site, but no function has yet been ascribed to domain II. Here, we show that the last cytosolic metabolite in the menaquinone biosynthesis pathway, 1,4-dihydroxy-2-naphthoic acid (DHNA), binds to domain II of Mtb -MenD and inhibits its activity. Using X-ray crystallography of four apo- and cofactor-bound Mtb -MenD structures, along with several spectroscopy assays, we identified three arginine residues (Arg-97, Arg-277, and Arg-303) that are important for both enzyme activity and the feedback inhibition by DHNA. Among these residues, Arg-277 appeared to be particularly important for signal propagation from the allosteric site to the active site. This is the first evidence of feedback regulation of the menaquinone biosynthesis pathway in bacteria, identifying a protein-level regulatory mechanism that controls menaquinone levels within the cell and may therefore represent a good target for disrupting menaquinone biosynthesis in M. tuberculosis .


  • Organizational Affiliation

    Laboratory of Structural Biology, School of Biological Sciences and Maurice Wilkins Centre for Molecular Biodiscovery, University of Auckland, Private Bag 92019, Auckland 1010, New Zealand.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
2-succinyl-5-enolpyruvyl-6-hydroxy-3-cyclohexene-1-carboxylate synthaseA,
B [auth D],
C [auth B],
D [auth C]
574Mycobacterium tuberculosis H37RvMutation(s): 0
Gene Names: menDRv0555
EC: 2.2.1.9
UniProt
Find proteins for P9WK11 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WK11
Go to UniProtKB:  P9WK11
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WK11
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 9 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
TOG (Subject of Investigation/LOI)
Query on TOG

Download Ideal Coordinates CCD File
M [auth D],
Z [auth C]
4-[3-[(4-azanyl-2-methyl-pyrimidin-5-yl)methyl]-4-methyl-5-[2-[oxidanyl(phosphonooxy)phosphoryl]oxyethyl]-1,3-thiazol-3 -ium-2-yl]-4-oxidanyl-butanoic acid
C16 H24 N4 O10 P2 S
VGWJMSNWDAXPBE-UHFFFAOYSA-N
DNA (Subject of Investigation/LOI)
Query on DNA

Download Ideal Coordinates CCD File
BA [auth C],
E [auth A],
O [auth D],
S [auth B]
1,4-dihydroxy-2-naphthoic acid
C11 H8 O4
VOJUXHHACRXLTD-UHFFFAOYSA-N
PGE
Query on PGE

Download Ideal Coordinates CCD File
X [auth B]TRIETHYLENE GLYCOL
C6 H14 O4
ZIBGPFATKBEMQZ-UHFFFAOYSA-N
AKG
Query on AKG

Download Ideal Coordinates CCD File
L [auth A]2-OXOGLUTARIC ACID
C5 H6 O5
KPGXRSRHYNQIFN-UHFFFAOYSA-N
GOL
Query on GOL

Download Ideal Coordinates CCD File
Y [auth B]GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
ACT
Query on ACT

Download Ideal Coordinates CCD File
F [auth A],
G [auth A],
H [auth A],
I [auth A]
ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
FMT
Query on FMT

Download Ideal Coordinates CCD File
J [auth A]
K [auth A]
P [auth D]
Q [auth D]
T [auth B]
J [auth A],
K [auth A],
P [auth D],
Q [auth D],
T [auth B],
U [auth B],
V [auth B],
W [auth B]
FORMIC ACID
C H2 O2
BDAGIHXWWSANSR-UHFFFAOYSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
R [auth D]CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
AA [auth C],
N [auth D]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free: 0.241
  • R-Value Work: 0.193
  • R-Value Observed: 0.195
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 100.674α = 90
b = 143.452β = 90
c = 172.741γ = 90
Software Package:
Software NamePurpose
XDSdata reduction
Aimlessdata scaling
PHENIXrefinement
REFMACrefinement
PDB_EXTRACTdata extraction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Royal Society of New ZealandNew Zealand--

Revision History  (Full details and data files)

  • Version 1.0: 2020-02-19
    Type: Initial release
  • Version 1.1: 2020-04-01
    Changes: Database references
  • Version 1.2: 2023-10-11
    Changes: Data collection, Database references, Derived calculations, Refinement description, Structure summary
