6XD0 | pdb_00006xd0

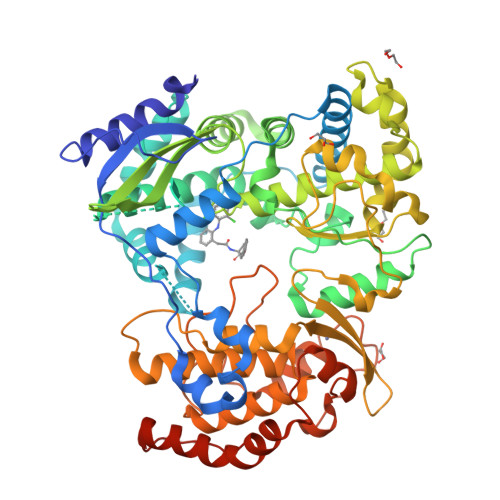

Dengue serotype 3 RNA-dependent RNA polymerase bound to NITD-434


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.01 Å
  • R-Value Free:
    0.194 (Depositor), 0.196 (DCC)
  • R-Value Work:
    0.175 (Depositor), 0.179 (DCC)
  • R-Value Observed:
    0.176 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 6XD0

Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history

Literature

Two RNA Tunnel Inhibitors Bind in Highly Conserved Sites in Dengue Virus NS5 Polymerase: Structural and Functional Studies.

Arora, R.Liew, C.W.Soh, T.S.Otoo, D.A.Seh, C.C.Yue, K.Nilar, S.Wang, G.Yokokawa, F.Noble, C.G.Chen, Y.L.Shi, P.Y.Lescar, J.Smith, T.M.Benson, T.E.Lim, S.P.

(2020) J Virol 94

  • DOI: https://doi.org/10.1128/JVI.01130-20
  • Primary Citation Related Structures:
    6XD0, 6XD1

  • PubMed Abstract:

    Dengue virus (DENV) NS5 RNA-dependent RNA polymerase (RdRp), an important drug target, synthesizes viral RNA and is essential for viral replication. While a number of allosteric inhibitors have been reported for hepatitis C virus RdRp, few have been described for DENV RdRp. Following a diverse compound screening campaign and a rigorous hit-to-lead flowchart combining biochemical and biophysical approaches, two DENV RdRp nonnucleoside inhibitors were identified and characterized. These inhibitors show low- to high-micromolar inhibition in DENV RNA polymerization and cell-based assays. X-ray crystallography reveals that they bind in the enzyme RNA template tunnel. One compound (NITD-434) induced an allosteric pocket at the junction of the fingers and palm subdomains by displacing residue V603 in motif B. Binding of another compound (NITD-640) ordered the fingers loop preceding the F motif, close to the RNA template entrance. Most of the amino acid residues that interacted with these compounds are highly conserved in flaviviruses. Both sites are important for polymerase de novo initiation and elongation activities and essential for viral replication. This work provides evidence that the RNA tunnel in DENV RdRp offers interesting target sites for inhibition. IMPORTANCE Dengue virus (DENV), an important arthropod-transmitted human pathogen that causes a spectrum of diseases, has spread dramatically worldwide in recent years. Despite extensive efforts, the only commercial vaccine does not provide adequate protection to naive individuals. DENV NS5 polymerase is a promising drug target, as exemplified by the development of successful commercial drugs against hepatitis C virus (HCV) polymerase and HIV-1 reverse transcriptase. High-throughput screening of compound libraries against this enzyme enabled the discovery of inhibitors that induced binding sites in the RNA template channel. Characterizations by biochemical, biophysical, and reverse genetics approaches provide a better understanding of the biological relevance of these allosteric sites and the way forward to design more-potent inhibitors.


  • Organizational Affiliation
    • Novartis Institute for Biomedical Research, Cambridge, Massachusetts, USA.

Macromolecule Content

  • Total Structure Weight: 74.7 kDa
  • Atom Count: 5,288
  • Modeled Residue Count: 589
  • Deposited Residue Count: 635
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
RNA-dependent RNA polymerase635dengue virus type 3Mutation(s): 0
UniProt
Find proteins for Q6YMS4 (Dengue virus type 3 (strain Sri Lanka/1266/2000))
Explore Q6YMS4
Go to UniProtKB:  Q6YMS4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ6YMS4
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
V0M
(Subject of Investigation/LOI)

Query on V0M



Download:Ideal Coordinates CCD File
I [auth A]2-[({2-[(2,6-dichlorophenyl)amino]phenyl}acetyl)amino]-2,3-dihydro-1H-indene-2-carboxylic acid
C24 H20 Cl2 N2 O3
ZBVLZAHLDOOBNG-UHFFFAOYSA-N
PEG

Query on PEG



Download:Ideal Coordinates CCD File
D [auth A],
F [auth A]
DI(HYDROXYETHYL)ETHER
C4 H10 O3
MTHSVFCYNBDYFN-UHFFFAOYSA-N
GOL

Query on GOL



Download:Ideal Coordinates CCD File
C [auth A],
E [auth A],
G [auth A]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
ZN

Query on ZN



Download:Ideal Coordinates CCD File
B [auth A],
H [auth A]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.01 Å
  • R-Value Free:  0.194 (Depositor), 0.196 (DCC)
  • R-Value Work:  0.175 (Depositor), 0.179 (DCC)
  • R-Value Observed: 0.176 (Depositor)
Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 161.66α = 90
b = 176.24β = 90
c = 57.76γ = 90
Software Package:
Software NamePurpose
XDSdata reduction
SCALAdata scaling
BUSTERrefinement
PDB_EXTRACTdata extraction
Cootmodel building

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2020-09-23
    Type: Initial release
  • Version 1.1: 2021-10-06
    Changes: Database references
  • Version 1.2: 2024-05-22
    Changes: Data collection
