7CY3 | pdb_00007cy3

Crystal structure of a biodegradable plastic-degrading cutinase from Paraphoma sp. B47-9.

• PDB DOI: https://doi.org/10.2210/pdb7CY3/pdb

• Classification: HYDROLASE
• Organism(s): Paraphoma sp. B47-9
• Mutation(s): No


• Deposited: 2020-09-03 Released: 2020-09-30
• Deposition Author(s): Suzuki, K., Koitabashi, M.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.27 Å
• R-Value Free:
  0.177 (Depositor), 0.180 (DCC)
• R-Value Work:
  0.124 (Depositor), 0.130 (DCC)
• R-Value Observed:
  0.127 (Depositor)

Starting Model: experimental

Literature

Crystal structure of a biodegradable plastic-degrading cutinase from Paraphoma sp. B47-9.

Suzuki, K., Koitabashi, M.

To be published.

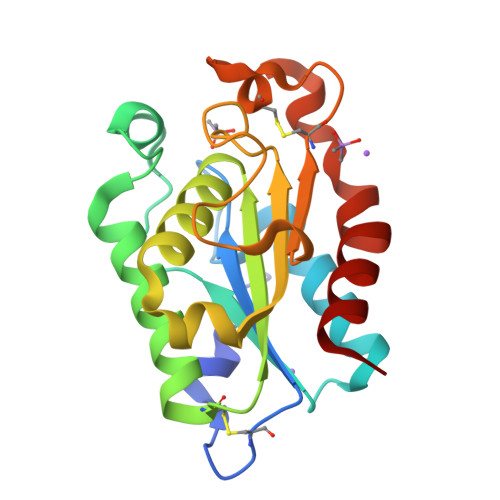

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 40.55 kDa
• Atom Count: 3,210
• Modelled Residue Count: 388
• Deposited Residue Count: 390
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Cutinase	A, B	195	Paraphoma sp. B47-9	Mutation(s): 0  EC: 3.1.1.74
UniProt
Find proteins for A0A060N399 (Paraphoma sp. B47-9) Explore A0A060N399  Go to UniProtKB:  A0A060N399

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
CAD (Subject of Investigation/LOI)	C [auth A], D [auth A], G [auth B], H [auth B]	CACODYLIC ACID C2 H7 As O2 OGGXGZAMXPVRFZ-UHFFFAOYSA-N
NA	E [auth A], F [auth A], I [auth B], J [auth B]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N

Modified Residues  1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
PCA	A, B	L-PEPTIDE LINKING	C5 H7 N O3		GLN

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.27 Å
• R-Value Free:  0.177 (Depositor), 0.180 (DCC)
• R-Value Work:  0.124 (Depositor), 0.130 (DCC)
• R-Value Observed: 0.127 (Depositor)

Space Group: P 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 34.886	α = 103.78
b = 43.517	β = 92.42
c = 51.724	γ = 101.49

Software Package:

Software Name	Purpose
REFMAC	refinement
Aimless	data scaling
PDB_EXTRACT	data extraction
xia2	data reduction
MOLREP	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2020-09-30
Deposition Author(s): Suzuki, K., Koitabashi, M.

Revision History

• Version 1.0: 2020-09-30
  Type: Initial release

• Version 2.0: 2020-12-16
  Type: Coordinate replacement
  Reason: Model orientation/position
  Changes: Advisory, Atomic model, Author supporting evidence, Data collection, Derived calculations, Refinement description, Structure summary
• Version 2.1: 2023-11-29
  Changes: Data collection, Database references, Refinement description
• Version 2.2: 2024-11-13
  Changes: Structure summary
