9OFM | pdb_00009ofm

GluN1/GluN3A in complex with glycine, LBD focused, in desensitized conformation

PDB DOI: https://doi.org/10.2210/pdb9OFM/pdb
EM Map EMD-70437: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Rattus norvegicus
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-04-29 Released: 2026-08-26
Deposition Author(s): Kim, J., Gouaux, E.
Funding Organization(s): National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 4.04 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9OFM

This is version 1.0 of the entry. See complete history.

Literature

GluN1/GluN3A in complex with glycine, LBD focused, in desensitized conformation

Kim, J., Gouaux, E.

To be published.

Macromolecule Content

Total Structure Weight: 414.52 kDa
Atom Count: 8,308
Modeled Residue Count: 1,128
Deposited Residue Count: 3,680
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

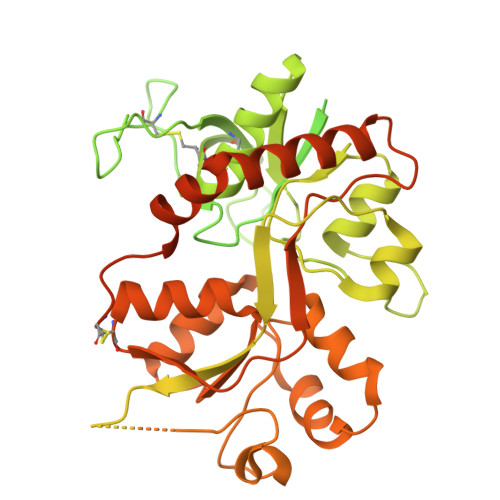

Isoform E of Glutamate receptor ionotropic, NMDA 1	A, C	870	Rattus norvegicus	Mutation(s): 0 Gene Names: Grin1, Nmdar1
UniProt
Find proteins for P35439 (Rattus norvegicus) Go to UniProtKB: P35439
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P35439-5
Glycosylation
Glycosylation Sites: 1	Glycosylation Focus chain A Focus chain C	Go to GlyGen: P35439-1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

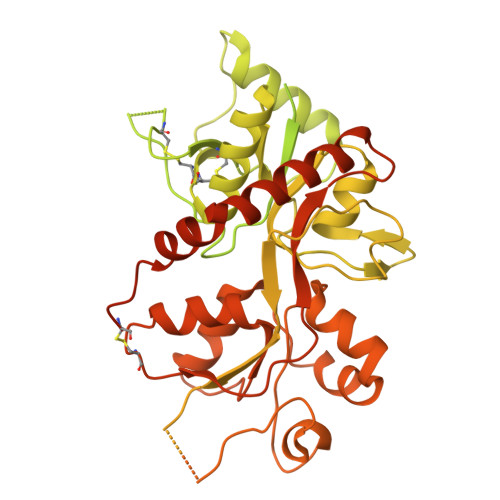

Glutamate receptor ionotropic, NMDA 3A	B [auth D], D [auth B]	970	Rattus norvegicus	Mutation(s): 0 Gene Names: Grin3a
UniProt
Find proteins for Q9R1M7 (Rattus norvegicus) Explore Q9R1M7 Go to UniProtKB: Q9R1M7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9R1M7
Glycosylation
Glycosylation Sites: 2	Glycosylation Focus chain B [auth D] Focus chain D [auth B]	Go to GlyGen: Q9R1M7-1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG (Subject of Investigation/LOI) Query on NAG Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth D] SDF format, chain H [auth D] SDF format, chain I [auth D] SDF format, chain J [auth C] SDF format, chain K [auth C] SDF format, chain L [auth B] SDF format, chain M [auth B] SDF format, chain N [auth B] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth D] MOL2 format, chain H [auth D] MOL2 format, chain I [auth D] MOL2 format, chain J [auth C] MOL2 format, chain K [auth C] MOL2 format, chain L [auth B] MOL2 format, chain M [auth B] MOL2 format, chain N [auth B] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth D] mmCIF format, chain H [auth D] mmCIF format, chain I [auth D] mmCIF format, chain J [auth C] mmCIF format, chain K [auth C] mmCIF format, chain L [auth B] mmCIF format, chain M [auth B] mmCIF format, chain N [auth B]	E [auth A] F [auth A] G [auth D] H [auth D] I [auth D] E [auth A], F [auth A], G [auth D], H [auth D], I [auth D], J [auth C], K [auth C], L [auth B], M [auth B], N [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth D] Focus chain H [auth D] Focus chain I [auth D] Focus chain J [auth C] Focus chain K [auth C] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth D] Focus chain H [auth D] Focus chain I [auth D] Focus chain J [auth C] Focus chain K [auth C] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 4.04 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487
RECONSTRUCTION	cryoSPARC	4.4

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-26

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)	United States	--

Revision History (Full details and data files)

Version 1.0: 2026-08-26
Type: Initial release
