9WZO | pdb_00009wzo

Crystal structure of 5-HT2AR in complex with antipsychotic drug pimavanserin

PDB DOI: https://doi.org/10.2210/pdb9WZO/pdb

Classification: MEMBRANE PROTEIN
Organism(s): Homo sapiens, Escherichia coli
Expression System: Spodoptera frugiperda
Mutation(s): Yes

Deposited: 2025-09-29 Released: 2026-10-07
Deposition Author(s): Tang, L., Cao, D., Wang, S.
Funding Organization(s): National Natural Science Foundation of China (NSFC), Ministry of Science and Technology (MoST, China)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.60 Å
R-Value Free:
0.268 (Depositor), 0.273 (DCC)
R-Value Work:
0.248 (Depositor), 0.251 (DCC)
R-Value Observed:
0.249 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Mechanisms Underlying Sustained Antidepressant Effects of Psychedelics Inspire Microdosing Strategies

He, L., Tang, L., Cao, D., Duan, W., Yu, J., Zhang, P., Li, H., Wang, Y., Meng, B., Wang, H., Zhou, Y., Li, B., Liu, X., Liu, Z., Zhang, L., Cheng, J., Wang, S.

To be published.

Macromolecule Content

Total Structure Weight: 47.72 kDa
Atom Count: 2,980
Modeled Residue Count: 365
Deposited Residue Count: 394
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

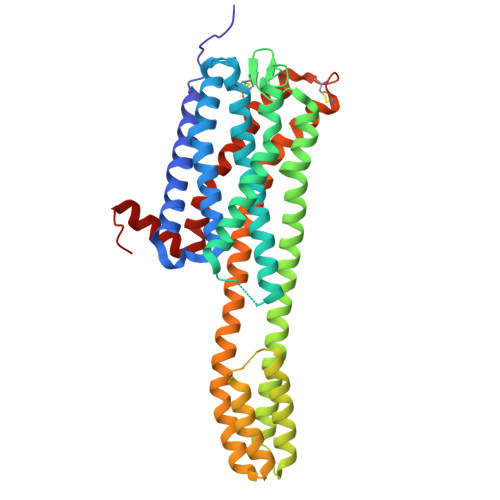

5-hydroxytryptamine receptor 2A,Soluble cytochrome b562	A	394	Homo sapiens, Escherichia coli	Mutation(s): 7 Gene Names: HTR2A, HTR2, cybC
UniProt & NIH Common Fund Data Resources
Find proteins for P28223 (Homo sapiens) Explore P28223 Go to UniProtKB: P28223
PHAROS: P28223 GTEx: ENSG00000102468
Find proteins for P0ABE7 (Escherichia coli) Explore P0ABE7 Go to UniProtKB: P0ABE7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Groups	P0ABE7 P28223
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 6 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1L11 (Subject of Investigation/LOI) Query on A1L11 Download:Ideal Coordinates CCD File SDF format, chain I [auth A] MOL2 format, chain I [auth A] mmCIF format, chain I [auth A]	I [auth A]	Pimavanserin C₂₅ H₃₄ F N₃ O₂ RKEWSXXUOLRFBX-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Interactions & Density Focus chain I [auth A]
CLR Query on CLR Download:Ideal Coordinates CCD File SDF format, chain B [auth A] SDF format, chain C [auth A] SDF format, chain G [auth A] MOL2 format, chain B [auth A] MOL2 format, chain C [auth A] MOL2 format, chain G [auth A] mmCIF format, chain B [auth A] mmCIF format, chain C [auth A] mmCIF format, chain G [auth A]	B [auth A], C [auth A], G [auth A]	CHOLESTEROL C₂₇ H₄₆ O HVYWMOMLDIMFJA-DPAQBDIFSA-N		Interactions Focus chain B [auth A] Focus chain C [auth A] Focus chain G [auth A] Interactions & Density Focus chain B [auth A] Focus chain C [auth A] Focus chain G [auth A]
OLC Query on OLC Download:Ideal Coordinates CCD File SDF format, chain K [auth A] SDF format, chain J [auth A] SDF format, chain F [auth A] SDF format, chain E [auth A] MOL2 format, chain K [auth A] MOL2 format, chain J [auth A] MOL2 format, chain F [auth A] MOL2 format, chain E [auth A] mmCIF format, chain K [auth A] mmCIF format, chain J [auth A] mmCIF format, chain F [auth A] mmCIF format, chain E [auth A]	E [auth A], F [auth A], J [auth A], K [auth A]	(2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate C₂₁ H₄₀ O₄ RZRNAYUHWVFMIP-GDCKJWNLSA-N		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain J [auth A] Focus chain K [auth A] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain J [auth A] Focus chain K [auth A]
1PE Query on 1PE Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	PENTAETHYLENE GLYCOL C₁₀ H₂₂ O₆ JLFNLZLINWHATN-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
PEG Query on PEG Download:Ideal Coordinates CCD File SDF format, chain L [auth A] MOL2 format, chain L [auth A] mmCIF format, chain L [auth A]	L [auth A]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain L [auth A] Interactions & Density Focus chain L [auth A]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain H [auth A] MOL2 format, chain H [auth A] mmCIF format, chain H [auth A]	H [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Interactions & Density Focus chain H [auth A]
