1FLM | pdb_00001flm

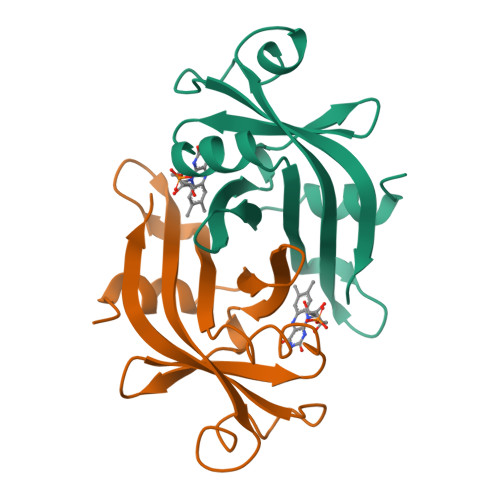

DIMER OF FMN-BINDING PROTEIN FROM DESULFOVIBRIO VULGARIS (MIYAZAKI F)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.30 Å
  • R-Value Free:
    0.182 (Depositor), 0.170 (DCC)
  • R-Value Work:
    0.140 (DCC)
  • R-Value Observed:
    0.150 (Depositor)

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted FMNClick on this verticalbar to view details

This is version 1.4 of the entry. See complete history


Literature

How do the x-ray structure and the NMR structure of FMN-binding protein differ?

Suto, K.Kawagoe, K.Shibata, N.Morimoto, Y.Higuchi, Y.Kitamura, M.Nakaya, T.Yasuoka, N.

(2000) Acta Crystallogr D Biol Crystallogr 56: 368-371

  • DOI: https://doi.org/10.1107/s0907444900000111
  • Primary Citation of Related Structures:
    1FLM

  • PubMed Abstract:

    The crystal structure of FMN-binding protein (FMN-bp) from Desulfovibrio vulgaris Miyazaki F was solved by the multiple isomorphous replacement method and refined to an R factor of 15.1% at 1.3 A resolution. FMN-bp exists in a dimeric form in the crystal, in contrast to the monomeric structure determined by NMR. R.m.s. deviations between the crystal structure and the solution structure are more than 2 A, which implies significant differences. There are some hydrophobic residues in the interface between the two monomers. In particular, Leu122 in the C-terminus has a close contact with the o-xylene moiety of FMN, while solvent molecules may cover the o-xylene moiety in the solution structure.


  • Organizational Affiliation

    Department of Life Science, Faculty of Science, Himeji Institute of Technology, 3-2-1 Kouto, Kamigori Ako-gun, Hyogo 678-1297, Japan.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
PROTEIN (FMN-BINDING PROTEIN)
A, B
122Nitratidesulfovibrio vulgaris str. 'Miyazaki FMutation(s): 0
UniProt
Find proteins for Q46604 (Nitratidesulfovibrio vulgaris (strain DSM 19637 / Miyazaki F))
Explore Q46604
Go to UniProtKB:  Q46604
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ46604
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.30 Å
  • R-Value Free:  0.182 (Depositor), 0.170 (DCC)
  • R-Value Work:  0.140 (DCC)
  • R-Value Observed: 0.150 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 37.23α = 90
b = 84.6β = 94.1
c = 41.11γ = 90
Software Package:
Software NamePurpose
MLPHAREphasing
SHELXL-97refinement
DENZOdata reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted FMNClick on this verticalbar to view details

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2000-03-06
    Type: Initial release
  • Version 1.1: 2008-04-26
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2014-11-26
    Changes: Other
  • Version 1.4: 2023-12-27
    Changes: Data collection, Database references, Derived calculations
