30ZU | pdb_000030zu

Bovine trypsin inhibited by PMSF.

PDB DOI: https://doi.org/10.2210/pdb30ZU/pdb

Classification: HYDROLASE
Organism(s): Bos taurus
Mutation(s): No

Deposited: 2026-05-19 Released: 2026-08-26
Deposition Author(s): Bloch, Y.
Funding Organization(s): H2020 Marie Curie Actions of the European Commission

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.05 Å
R-Value Free:
0.140 (Depositor), 0.134 (DCC)
R-Value Work:
0.119 (Depositor), 0.116 (DCC)
R-Value Observed:
0.119 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 30ZU

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Observation of sulfonylation elimination products by crystallography.

Bloch, Y., Panneerselvam, S.

To be published.

Macromolecule Content

Total Structure Weight: 26.02 kDa
Atom Count: 2,127
Modeled Residue Count: 223
Deposited Residue Count: 246
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

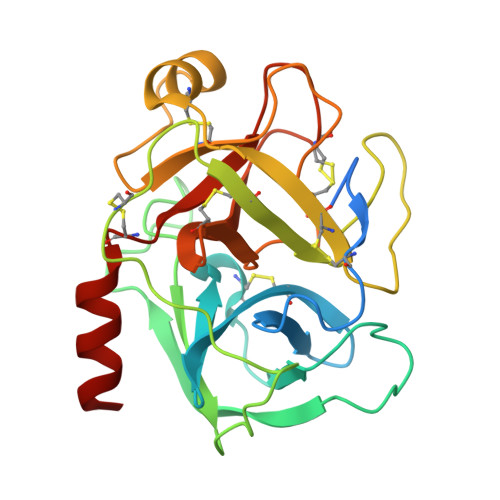

Cationic Trypsin	A	246	Bos taurus	Mutation(s): 0 EC: 3.4.21.4
UniProt
Find proteins for P00760 (Bos taurus) Explore P00760 Go to UniProtKB: P00760
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P00760
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
PMS (Subject of Investigation/LOI) Query on PMS Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	phenylmethanesulfonic acid C₇ H₈ O₃ S NIXKBAZVOQAHGC-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]
CA Query on CA Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.05 Å
R-Value Free: 0.140 (Depositor), 0.134 (DCC)
R-Value Work: 0.119 (Depositor), 0.116 (DCC)
R-Value Observed: 0.119 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 54.582	α = 90
b = 58.161	β = 90
c = 66.644	γ = 90

Software Package:

Software Name	Purpose
BUSTER	refinement
autoPROC	data reduction
XDS	data reduction
STARANISO	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-26

Deposition Author(s):

Funding Organization	Location	Grant Number
H2020 Marie Curie Actions of the European Commission	European Union	945405

Revision History (Full details and data files)

Version 1.0: 2026-08-26
Type: Initial release
