3HPX

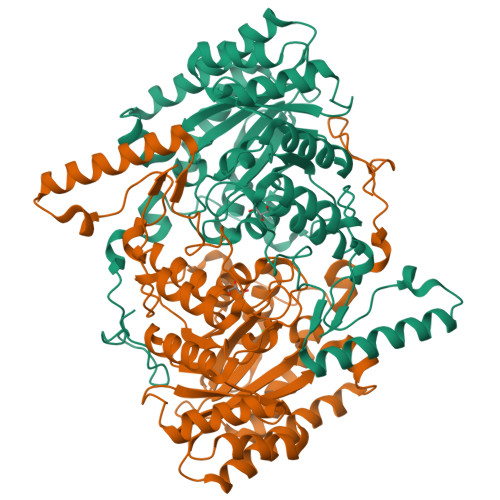

Crystal structure of Mycobacterium tuberculosis LeuA active site domain 1-425 (truncation mutant delta:426-644)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.03 Å
  • R-Value Free: 0.238
  • R-Value Work: 0.174
  • R-Value Observed: 0.177

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

Removal of the C-terminal regulatory domain of alpha-isopropylmalate synthase disrupts functional substrate binding

Huisman, F.H.Koon, N.Bulloch, E.M.Baker, H.M.Baker, E.N.Squire, C.J.Parker, E.J.

(2012) Biochemistry 51: 2289-2297

  • DOI: https://doi.org/10.1021/bi201717j
  • Primary Citation of Related Structures:
    3HPX, 3RMJ, 3U6W

  • PubMed Abstract:

    α-Isopropylmalate synthase (α-IPMS) catalyzes the metal-dependent aldol reaction between α-ketoisovalerate (α-KIV) and acetyl-coenzyme A (AcCoA) to give α-isopropylmalate (α-IPM). This reaction is the first committed step in the biosynthesis of leucine in bacteria. α-IPMS is homodimeric, with monomers consisting of (β/α)(8) barrel catalytic domains fused to a C-terminal regulatory domain, responsible for binding leucine and providing feedback regulation for leucine biosynthesis. In these studies, we demonstrate that removal of the regulatory domain from the α-IPMS enzymes of both Neisseria meningitidis (NmeIPMS) and Mycobacterium tuberculosis (MtuIPMS) results in enzymes that are unable to catalyze the formation of α-IPM, although truncated NmeIPMS was still able to slowly hydrolyze AcCoA. The lack of catalytic activity of these truncation variants was confirmed by complementation studies with Escherichia coli cells lacking the α-IPMS gene, where transformation with the plasmids encoding the truncated α-IPMS enzymes was not able to rescue α-IPMS activity. X-ray crystal structures of both truncation variants reveal that both proteins are dimeric and that the catalytic sites of the proteins are intact, although the divalent metal ion that is thought to be responsible for activating substrate α-KIV is displaced slightly relative to its position in the substrate-bound, wild-type structure. Isothermal titration calorimetry and WaterLOGSY nuclear magnetic resonance experiments demonstrate that although these truncation variants are not able to catalyze the reaction between α-KIV and AcCoA, they are still able to bind the substrate α-KIV. It is proposed that the regulatory domain is crucial for ensuring protein dynamics necessary for competent catalysis.


  • Organizational Affiliation

    Biomolecular Interaction Centre and Department of Chemistry, University of Canterbury, Christchurch, New Zealand.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
2-isopropylmalate synthase
A, B
425Mycobacterium tuberculosis H37RvMutation(s): 0
Gene Names: leuAMT3813MTV025.058Rv3710
EC: 2.3.3.13
UniProt
Find proteins for P9WQB3 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WQB3
Go to UniProtKB:  P9WQB3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WQB3
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.03 Å
  • R-Value Free: 0.238
  • R-Value Work: 0.174
  • R-Value Observed: 0.177
  • Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 48.025α = 62.45
b = 70.886β = 81.41
c = 70.043γ = 70.26
Software Package:
Software NamePurpose
MAR345dtbdata collection
REFMACrefinement
MOSFLMdata reduction
SCALAdata scaling
REFMACphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2010-05-19
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Source and taxonomy, Version format compliance
  • Version 1.2: 2012-03-14
    Changes: Database references
  • Version 1.3: 2013-06-19
    Changes: Database references
  • Version 1.4: 2023-09-06
    Changes: Data collection, Database references, Derived calculations, Refinement description
