4XMV

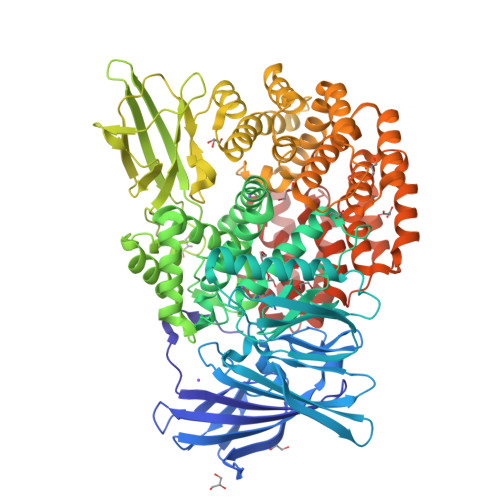

Crystal Structure of Met260Ala mutant of E. coli Aminopeptidase N in complex with L-Arginine

PDB DOI: https://doi.org/10.2210/pdb4XMV/pdb

Classification: HYDROLASE
Organism(s): Escherichia coli K-12
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2015-01-15 Released: 2016-02-10
Deposition Author(s): Addlagatta, A., Gumpena, R., Kishor, C.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.92 Å
R-Value Free: 0.216
R-Value Work: 0.148
R-Value Observed: 0.151

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

Crystal Structure of Met260Ala mutant of E. coli Aminopeptidase N in complex with L-arginine

Addlagatta, A., Gumpena, R.

To be published.

Macromolecule Content

Total Structure Weight: 100.01 kDa
Atom Count: 7,279
Modelled Residue Count: 866
Deposited Residue Count: 866
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Aminopeptidase N	A	866	Escherichia coli K-12	Mutation(s): 1 Gene Names: pepN, b0932, JW0915 EC: 3.4.11.2
UniProt
Find proteins for P04825 (Escherichia coli (strain K12)) Explore P04825 Go to UniProtKB: P04825
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P04825
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ARG Query on ARG Download Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	ARGININE C₆ H₁₅ N₄ O₂ ODKSFYDXXFIFQN-BYPYZUCNSA-O		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]
MLI Query on MLI Download Ideal Coordinates CCD File SDF format, chain R [auth A] SDF format, chain S [auth A] MOL2 format, chain R [auth A] MOL2 format, chain S [auth A] mmCIF format, chain R [auth A] mmCIF format, chain S [auth A]	R [auth A], S [auth A]	MALONATE ION C₃ H₂ O₄ OFOBLEOULBTSOW-UHFFFAOYSA-L		Interactions Focus chain R [auth A] Focus chain S [auth A] Interactions & Density Focus chain R [auth A] Focus chain S [auth A]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain M [auth A] SDF format, chain N [auth A] SDF format, chain O [auth A] SDF format, chain P [auth A] SDF format, chain Q [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain M [auth A] MOL2 format, chain N [auth A] MOL2 format, chain O [auth A] MOL2 format, chain P [auth A] MOL2 format, chain Q [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain M [auth A] mmCIF format, chain N [auth A] mmCIF format, chain O [auth A] mmCIF format, chain P [auth A] mmCIF format, chain Q [auth A]	G [auth A] H [auth A] I [auth A] J [auth A] K [auth A] G [auth A], H [auth A], I [auth A], J [auth A], K [auth A], L [auth A], M [auth A], N [auth A], O [auth A], P [auth A], Q [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Interactions & Density Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
NA Query on NA Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A]	D [auth A], E [auth A], F [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.92 Å
R-Value Free: 0.216
R-Value Work: 0.148
R-Value Observed: 0.151
Space Group: P 3₁ 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 120.812	α = 90
b = 120.812	β = 90
c = 170.279	γ = 120

Software Package:

Software Name	Purpose
REFMAC	refinement
HKL-3000	data reduction
HKL-3000	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History

Deposition Data

Released Date: 2016-02-10

Deposition Author(s):

Addlagatta, A.

Gumpena, R.

Kishor, C.

Revision History (Full details and data files)

Version 1.0: 2016-02-10
Type: Initial release
Version 1.1: 2023-11-08
Changes: Data collection, Database references, Derived calculations, Refinement description
