5O3K

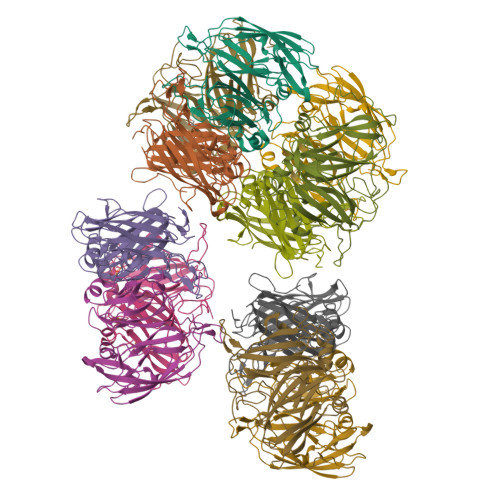

Crystal Structure of mutant M54L/M64L/M96L of Two-Domain Laccase from Streptomyces griseoflavus with 1 mM copper sulfate on growth medium


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.262
  • R-Value Work: 0.196
  • R-Value Observed: 0.205

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Incorporation of Copper Ions into T2/T3 Centers of Two-Domain Laccases.

Gabdulkhakov, A.G.Kostareva, O.S.Kolyadenko, I.A.Mikhaylina, A.O.Trubitsina, L.I.Tishchenko, S.V.

(2018) Mol Biol (Mosk) 52: 29-35

  • DOI: https://doi.org/10.7868/S0026898418010056
  • Primary Citation of Related Structures:
    5O3K, 5O4I, 5O4Q

  • PubMed Abstract:

    Laccase belongs to the family of copper-containing oxidases. A study was made of the mechanism that sustains the incorporation of copper ions into the T2/T3 centers of recombinant two-domain laccase Streptomyces griseoflavus Ac-993. The occupancy of the T3 center by copper ions was found to increase with an increasing copper content in the culture medium and after dialysis of the protein preparation against a copper sulfate-containing buffer. The T2 center was filled only when overproducer strain cells were grown at a higher copper concentration in the medium. Two-domain laccases were assumed to possess a channel that serves to deliver copper ions to the T3 center during the formation of the three-dimensional laccase conformation and dialysis of the protein preparation. A narrower channel leads to the T2 center in two-domain laccases compared with three-domain ones, rendering the center less accessible for copper atoms. The incorporation of copper ions into the T2 center of two-domain laccases is likely to occur in the course of their biosynthesis or the formation of a functional trimer.


  • Organizational Affiliation

    Institute of Protein Research, Russian Academy of Sciences, Pushchino, Moscow oblast, 142290 Russia.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Two-domain laccase
A, B, C, D, E
A, B, C, D, E, F, G, H, I, J, K, L
322Streptomyces griseoflavusMutation(s): 3
EC: 1.10.3.2
UniProt
Find proteins for A0A0M4FJ81 (Streptomyces griseoflavus)
Explore A0A0M4FJ81
Go to UniProtKB:  A0A0M4FJ81
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0M4FJ81
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GOL
Query on GOL

Download Ideal Coordinates CCD File
AB [auth K],
T [auth B],
X [auth C]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
CU
Query on CU

Download Ideal Coordinates CCD File
AA [auth D]
BB [auth L]
CA [auth E]
CB [auth L]
DA [auth E]
AA [auth D],
BB [auth L],
CA [auth E],
CB [auth L],
DA [auth E],
DB [auth L],
EA [auth E],
EB [auth L],
FA [auth F],
GA [auth F],
HA [auth F],
IA [auth F],
JA [auth G],
KA [auth G],
LA [auth G],
M [auth A],
MA [auth G],
N [auth A],
NA [auth H],
OA [auth H],
P [auth A],
PA [auth H],
Q [auth B],
QA [auth H],
R [auth B],
RA [auth I],
S [auth B],
SA [auth I],
TA [auth I],
U [auth C],
UA [auth J],
V [auth C],
VA [auth J],
W [auth C],
WA [auth J],
XA [auth K],
Y [auth D],
YA [auth K],
Z [auth D],
ZA [auth K]
COPPER (II) ION
Cu
JPVYNHNXODAKFH-UHFFFAOYSA-N
OXY
Query on OXY

Download Ideal Coordinates CCD File
BA [auth D]OXYGEN MOLECULE
O2
MYMOFIZGZYHOMD-UHFFFAOYSA-N
O
Query on O

Download Ideal Coordinates CCD File
O [auth A]OXYGEN ATOM
O
XLYOFNOQVPJJNP-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.262
  • R-Value Work: 0.196
  • R-Value Observed: 0.205
  • Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 77.027α = 89.88
b = 94.957β = 90.07
c = 116.456γ = 91.7
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
RFBRRussian Federation15-04-03002

Revision History  (Full details and data files)

  • Version 1.0: 2018-03-28
    Type: Initial release
  • Version 1.1: 2018-04-25
    Changes: Data collection, Database references
  • Version 1.2: 2019-10-16
    Changes: Data collection
  • Version 1.3: 2024-01-17
    Changes: Data collection, Database references, Derived calculations, Refinement description
