6E56

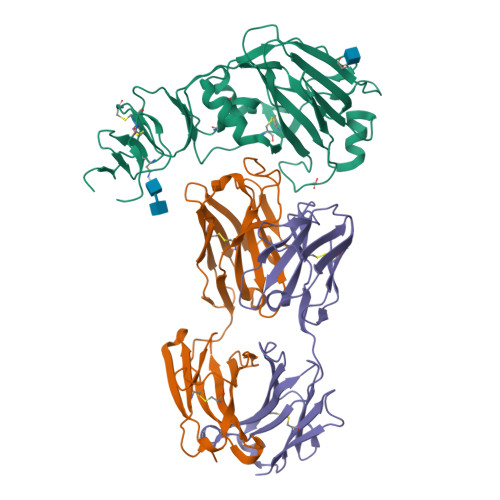

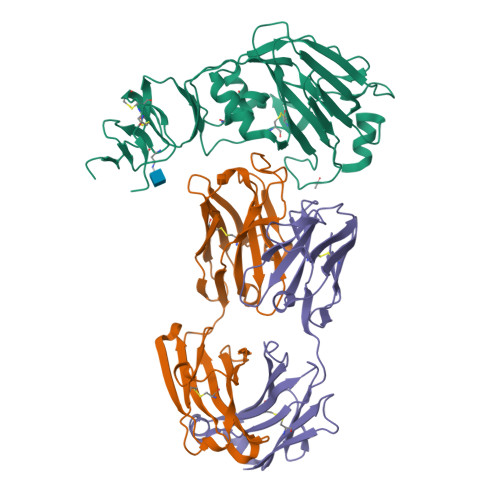

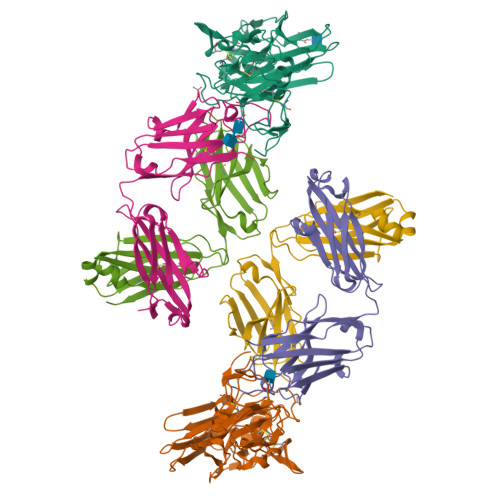

Human antibody H2214 in complex with influenza hemagglutinin A/Aichi/2/1968 (X-31) (H3N2)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.214
  • R-Value Work: 0.188
  • R-Value Observed: 0.189

Starting Models: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 2.2 of the entry. See complete history


Literature

Antibodies to a Conserved Influenza Head Interface Epitope Protect by an IgG Subtype-Dependent Mechanism.

Watanabe, A.McCarthy, K.R.Kuraoka, M.Schmidt, A.G.Adachi, Y.Onodera, T.Tonouchi, K.Caradonna, T.M.Bajic, G.Song, S.McGee, C.E.Sempowski, G.D.Feng, F.Urick, P.Kepler, T.B.Takahashi, Y.Harrison, S.C.Kelsoe, G.

(2019) Cell 177: 1124-1135.e16

  • DOI: https://doi.org/10.1016/j.cell.2019.03.048
  • Primary Citation of Related Structures:
    6E4X, 6E56

  • PubMed Abstract:

    Vaccines to generate durable humoral immunity against antigenically evolving pathogens such as the influenza virus must elicit antibodies that recognize conserved epitopes. Analysis of single memory B cells from immunized human donors has led us to characterize a previously unrecognized epitope of influenza hemagglutinin (HA) that is immunogenic in humans and conserved among influenza subtypes. Structures show that an unrelated antibody from a participant in an experimental infection protocol recognized the epitope as well. IgGs specific for this antigenic determinant do not block viral infection in vitro, but passive administration to mice affords robust IgG subtype-dependent protection against influenza infection. The epitope, occluded in the pre-fusion form of HA, is at the contact surface between HA head domains; reversible molecular "breathing" of the HA trimer can expose the interface to antibody and B cells. Antigens that present this broadly immunogenic HA epitope may be good candidates for inclusion in "universal" flu vaccines.


  • Organizational Affiliation

    Department of Immunology, Duke University, Durham, NC 27710, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
HemagglutininA [auth D],
B [auth A]
290Influenza A virus (A/Aichi/2/1968(H3N2))Mutation(s): 0
Gene Names: HA
UniProt
Find proteins for P03437 (Influenza A virus (strain A/Aichi/2/1968 H3N2))
Explore P03437
Go to UniProtKB:  P03437
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03437
Glycosylation
Glycosylation Sites: 2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
antibody H2214 heavy chainC [auth H],
D [auth G]
253Homo sapiensMutation(s): 0
Gene Names: IGHV3-23*01
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
antibody H2214 light chain, K1642E [auth I],
F [auth J]
215Homo sapiensMutation(s): 0
Gene Names: IGKV3-15*01
UniProt
Find proteins for Q6PIL8 (Homo sapiens)
Explore Q6PIL8
Go to UniProtKB:  Q6PIL8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ6PIL8
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 4
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseG [auth B]2N-Glycosylation
Glycosylation Resources
GlyTouCan:  G42666HT
GlyCosmos:  G42666HT
GlyGen:  G42666HT
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.214
  • R-Value Work: 0.188
  • R-Value Observed: 0.189
  • Space Group: P 21 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 77.55α = 90
b = 98.71β = 90
c = 224.87γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XSCALEdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesP01AI089618
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United States1U19AI117892-01
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesAI128832

Revision History  (Full details and data files)

  • Version 1.0: 2019-05-22
    Type: Initial release
  • Version 1.1: 2019-05-29
    Changes: Data collection, Database references
  • Version 1.2: 2019-12-18
    Changes: Author supporting evidence
  • Version 2.0: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Atomic model, Data collection, Derived calculations, Structure summary
  • Version 2.1: 2023-10-11
    Changes: Data collection, Database references, Refinement description, Structure summary
  • Version 2.2: 2024-11-13
    Changes: Structure summary
