6JSZ

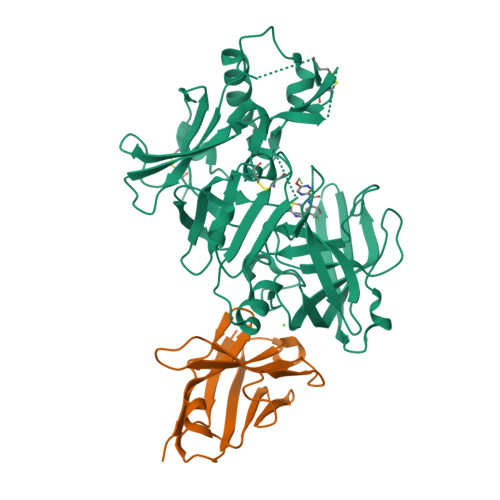

BACE2 xaperone complex with N-{3-[(5R)-3-amino-5-methyl-9,9-dioxo-2,9lambda6-dithia-4-azaspiro[5.5]undec-3-en-5-yl]-4-fluorophenyl}-5-(fluoromethoxy)pyrazine-2-carboxamide


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.53 Å
  • R-Value Free: 0.237
  • R-Value Work: 0.225
  • R-Value Observed: 0.226

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Structure-Based Design of Selective beta-Site Amyloid Precursor Protein Cleaving Enzyme 1 (BACE1) Inhibitors: Targeting the Flap to Gain Selectivity over BACE2.

Fujimoto, K.Matsuoka, E.Asada, N.Tadano, G.Yamamoto, T.Nakahara, K.Fuchino, K.Ito, H.Kanegawa, N.Moechars, D.Gijsen, H.J.M.Kusakabe, K.I.

(2019) J Med Chem 62: 5080-5095

  • DOI: https://doi.org/10.1021/acs.jmedchem.9b00309
  • Primary Citation of Related Structures:
    6JSE, 6JSF, 6JSG, 6JSN, 6JSZ

  • PubMed Abstract:

    BACE1 inhibitors hold potential as agents in disease-modifying treatment for Alzheimer's disease. BACE2 cleaves the melanocyte protein PMEL in pigment cells of the skin and eye, generating melanin pigments. This role of BACE2 implies that nonselective and chronic inhibition of BACE1 may cause side effects derived from BACE2. Herein, we describe the discovery of potent and selective BACE1 inhibitors using structure-based drug design. We targeted the flap region, where the shape and flexibility differ between these enzymes. Analysis of the cocrystal structures of an initial lead 8 prompted us to incorporate spirocycles followed by its fine-tuning, culminating in highly selective compounds 21 and 22. The structures of 22 bound to BACE1 and BACE2 revealed that a relatively high energetic penalty in the flap of the 22-bound BACE2 structure may cause a loss in BACE2 potency, thereby leading to its high selectivity. These findings and insights should contribute to responding to the challenges in exploring selective BACE1 inhibitors.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Beta-secretase 2386Homo sapiensMutation(s): 0
Gene Names: BACE2AEPLCALP56ASP21CDA13UNQ418/PRO852
EC: 3.4.23.45
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y5Z0 (Homo sapiens)
Explore Q9Y5Z0
Go to UniProtKB:  Q9Y5Z0
PHAROS:  Q9Y5Z0
GTEx:  ENSG00000182240
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y5Z0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
XAPERONEB [auth D]111Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
C7O
Query on C7O

Download Ideal Coordinates CCD File
C [auth A]N-[3-[(5R)-3-azanyl-5-methyl-9,9-bis(oxidanylidene)-2,9$l^{6}-dithia-4-azaspiro[5.5]undec-3-en-5-yl]-4-fluoranyl-phenyl]-5-(fluoranylmethoxy)pyrazine-2-carboxamide
C21 H23 F2 N5 O4 S2
DZTJZUAOGBUBNK-HXUWFJFHSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
D [auth A]CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.53 Å
  • R-Value Free: 0.237
  • R-Value Work: 0.225
  • R-Value Observed: 0.226
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 63.542α = 90
b = 74.467β = 90
c = 109.135γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
XSCALEdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Revision History  (Full details and data files)

  • Version 1.0: 2019-08-28
    Type: Initial release
  • Version 1.1: 2023-11-22
    Changes: Data collection, Database references, Refinement description
  • Version 1.2: 2024-10-09
    Changes: Structure summary
