6QLJ

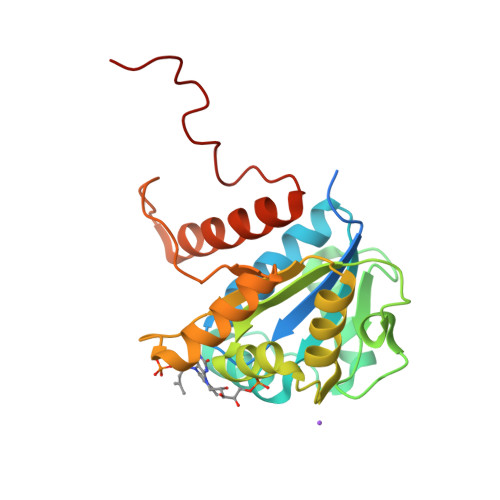

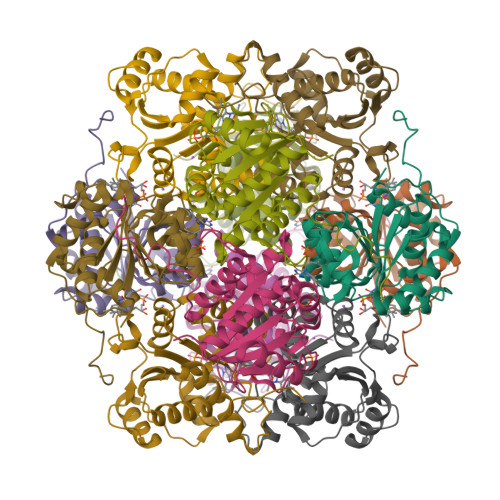

Crystal structure of F181Q UbiX in complex with an oxidised N5-C1' adduct derived from DMAP


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.77 Å
  • R-Value Free: 0.212
  • R-Value Work: 0.176
  • R-Value Observed: 0.178

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

The UbiX flavin prenyltransferase reaction mechanism resembles class I terpene cyclase chemistry.

Marshall, S.A.Payne, K.A.P.Fisher, K.White, M.D.Ni Cheallaigh, A.Balaikaite, A.Rigby, S.E.J.Leys, D.

(2019) Nat Commun 10: 2357-2357

  • DOI: https://doi.org/10.1038/s41467-019-10220-1
  • Primary Citation of Related Structures:
    6QLG, 6QLH, 6QLI, 6QLJ, 6QLK, 6QLL, 6QLV

  • PubMed Abstract:

    The UbiX-UbiD enzymes are widespread in microbes, acting in concert to decarboxylate alpha-beta unsaturated carboxylic acids using a highly modified flavin cofactor, prenylated FMN (prFMN). UbiX serves as the flavin prenyltransferase, extending the isoalloxazine ring system with a fourth non-aromatic ring, derived from sequential linkage between a dimethylallyl moiety and the FMN N5 and C6. Using structure determination and solution studies of both dimethylallyl monophosphate (DMAP) and dimethyallyl pyrophosphate (DMAPP) dependent UbiX enzymes, we reveal the first step, N5-C1' bond formation, is contingent on the presence of a dimethylallyl substrate moiety. Hence, an S N 1 mechanism similar to other prenyltransferases is proposed. Selected variants of the (pyro)phosphate binding site are unable to catalyse subsequent Friedel-Crafts alkylation of the flavin C6, but can be rescued by addition of (pyro)phosphate. Thus, retention of the (pyro)phosphate leaving group is required for C6-C3' bond formation, resembling pyrophosphate initiated class I terpene cyclase reaction chemistry.


  • Organizational Affiliation

    Manchester Institute of Biotechnology, University of Manchester, Manchester, M1 7DN, UK.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Flavin prenyltransferase UbiX230Pseudomonas aeruginosaMutation(s): 0
Gene Names:
EC: 2.5.1.129
UniProt
Find proteins for A0A072ZCW8 (Pseudomonas aeruginosa)
Explore A0A072ZCW8
Go to UniProtKB:  A0A072ZCW8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A072ZCW8
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
4LS
Query on 4LS

Download Ideal Coordinates CCD File
B [auth A]1-deoxy-1-[7,8-dimethyl-5-(3-methylbut-2-en-1-yl)-2,4-dioxo-1,3,4,5-tetrahydrobenzo[g]pteridin-10(2H)-yl]-5-O-phosphono -D-ribitol
C22 H31 N4 O9 P
BJBVBUWJZZTUOU-SCTDSRPQSA-N
PO4
Query on PO4

Download Ideal Coordinates CCD File
D [auth A]PHOSPHATE ION
O4 P
NBIIXXVUZAFLBC-UHFFFAOYSA-K
NA
Query on NA

Download Ideal Coordinates CCD File
C [auth A]SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.77 Å
  • R-Value Free: 0.212
  • R-Value Work: 0.176
  • R-Value Observed: 0.178
  • Space Group: F 2 3
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 141.887α = 90
b = 141.887β = 90
c = 141.887γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
DIALSdata reduction
DIALSdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Biotechnology and Biological Sciences Research CouncilUnited KingdomBB/K017802/1
Biotechnology and Biological Sciences Research CouncilUnited KingdomBB/P000622/1

Revision History  (Full details and data files)

  • Version 1.0: 2019-06-05
    Type: Initial release
  • Version 1.1: 2019-06-12
    Changes: Data collection, Database references
  • Version 1.2: 2024-01-24
    Changes: Data collection, Database references, Derived calculations, Refinement description, Structure summary
