8FHF

Crystal structure of PPARgamma ligand-binding domain in complex with ZINC5672437

• PDB DOI: https://doi.org/10.2210/pdb8FHF/pdb

• Classification: TRANSCRIPTION
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2022-12-14 Released: 2024-03-20
• Deposition Author(s): Shang, J., Kojetin, D.J.
• Funding Organization(s): National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.10 Å
• R-Value Free: 0.285
• R-Value Work: 0.233
• R-Value Observed: 0.236

Starting Model: experimental

Literature

Crystal structure of PPARgamma ligand-binding domain in complex with ZINC5672437

Shang, J., Kojetin, D.J.

To be published.

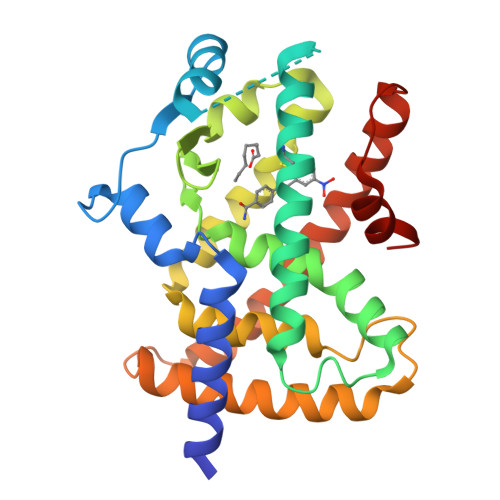

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

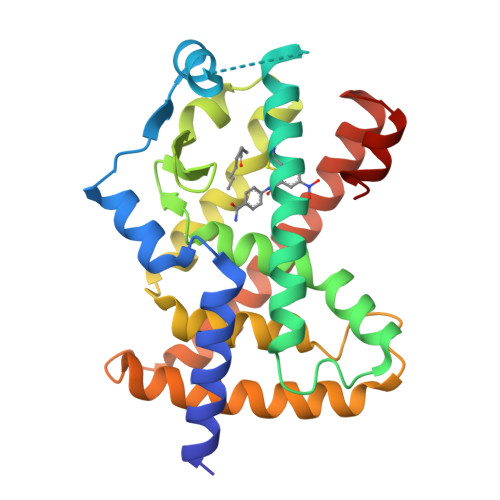

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 63.85 kDa
• Atom Count: 4,355
• Modelled Residue Count: 504
• Deposited Residue Count: 550
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Peroxisome proliferator-activated receptor gamma	A, B	275	Homo sapiens	Mutation(s): 0  Gene Names: PPARG, NR1C3
UniProt & NIH Common Fund Data Resources
Find proteins for P37231 (Homo sapiens) Go to UniProtKB:  P37231
PHAROS:  P37231 GTEx:  ENSG00000132170

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
XZK	C [auth A], E [auth B]	N-(4-carbamoylphenyl)-2-chloro-5-nitrobenzamide C14 H10 Cl N3 O4 KKGNLIYEFKWUEM-UHFFFAOYSA-N
KNA (Subject of Investigation/LOI)	D [auth A], F [auth B]	nonanoic acid C9 H18 O2 FBUKVWPVBMHYJY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.10 Å
• R-Value Free: 0.285
• R-Value Work: 0.233
• R-Value Observed: 0.236
• Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 91.635	α = 90
b = 60.695	β = 102.51
c = 117.076	γ = 90

Software Package:

Software Name	Purpose
SCALA	data scaling
PHENIX	refinement
PDB_EXTRACT	data extraction
DIALS	data reduction
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2024-03-20
Deposition Author(s): Shang, J., Kojetin, D.J.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)	United States	6R01DK124870

Revision History

• Version 1.0: 2024-03-20
  Type: Initial release

• Version 1.1: 2024-10-16
  Changes: Structure summary
