8THQ | pdb_00008thq

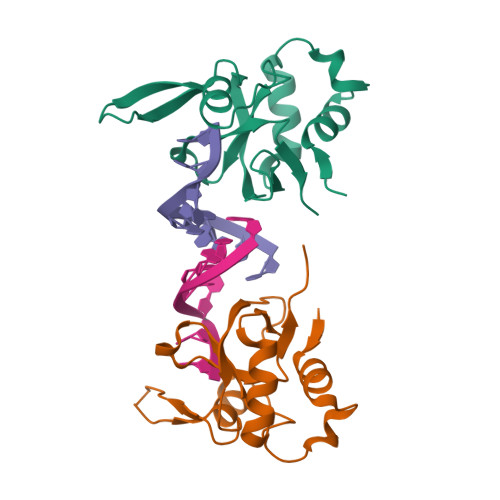

Nonamer RNA bound to hAgo2-PAZ


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.41 Å
  • R-Value Free:
    0.284 (Depositor), 0.286 (DCC)
  • R-Value Work:
    0.215 (Depositor), 0.224 (DCC)
  • R-Value Observed:
    0.218 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Single-Stranded Hairpin Loop RNAs (loopmeRNAs) Potently Induce Gene Silencing through the RNA Interference Pathway.

Aluri, K.C.Datta, D.Waldron, S.Taneja, N.Qin, J.Donnelly, D.P.Theile, C.S.Guenther, D.C.Lei, L.Harp, J.M.Pallan, P.S.Egli, M.Zlatev, I.Manoharan, M.

(2024) J Am Chem Soc

  • DOI: https://doi.org/10.1021/jacs.4c07902
  • Primary Citation of Related Structures:
    8THQ

  • PubMed Abstract:

    Synthetic small interfering RNAs conjugated to trivalent N -acetylgalactosamine (GalNAc) are clinically validated drugs for treatment of liver diseases. Incorporation of phosphorothioate linkages and ribose modifications are necessary for stability, potency, and duration of pharmacology. Although multiple alternative siRNA designs such as Dicer-substrate RNA, shRNA, and circular RNA have been evaluated in vitro and in preclinical studies with some success, clinical applications of these designs are limited as it is difficult to incorporate chemical modifications in these designs. An alternative siRNA design that can incorporate chemical modifications through straightforward synthesis without compromising potency will significantly advance the field. Here, we report a facile synthesis of GalNAc ligand-containing single-stranded loop hairpin RNAs (loopmeRNAs) with clinically relevant chemical modifications. We evaluated the efficiency of novel loopmeRNA designs in vivo and correlated their structure-activity relationship with the support of in vitro metabolism data. Sequences and chemical modifications in the loop region of the loopmeRNA design were optimized for maximal potency. Our studies demonstrate that loopmeRNAs can efficiently silence expression of target genes with comparable efficacy to conventional double-stranded siRNAs but reduced environmental and regulatory burdens.


  • Organizational Affiliation

    Alnylam Pharmaceuticals, Inc., Cambridge, Massachusetts 02142, United States.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Protein argonaute-2A,
D [auth B]
127Homo sapiensMutation(s): 0
Gene Names: AGO2EIF2C2
EC: 3.1.26
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UKV8 (Homo sapiens)
Explore Q9UKV8
Go to UniProtKB:  Q9UKV8
PHAROS:  Q9UKV8
GTEx:  ENSG00000123908
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UKV8
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.41 Å
  • R-Value Free:  0.284 (Depositor), 0.286 (DCC)
  • R-Value Work:  0.215 (Depositor), 0.224 (DCC)
  • R-Value Observed: 0.218 (Depositor)
Space Group: P 65
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 91.936α = 90
b = 91.936β = 90
c = 69.579γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
HKL-2000data reduction
HKL-2000data scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other private--

Revision History  (Full details and data files)

  • Version 1.0: 2024-10-16
    Type: Initial release
