8V5B

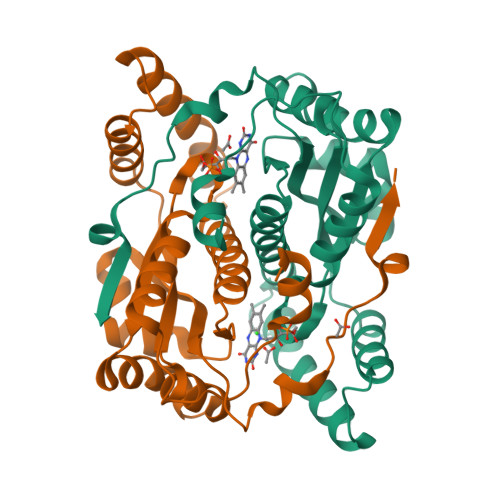

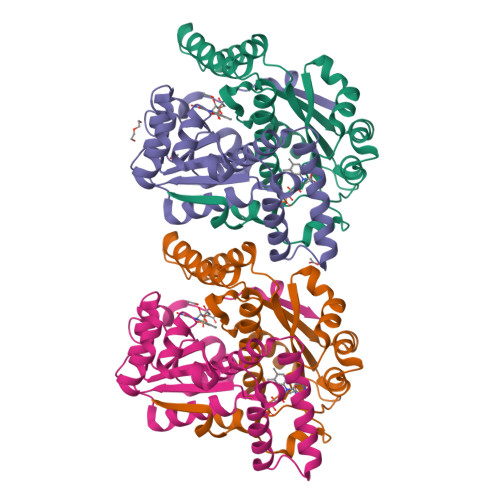

Structure of the oxygen-insensitive NAD(P)H-dependent nitroreductase NfsB_Ec F70A/F108Y in complex with FMN


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.98 Å
  • R-Value Free: 0.219
  • R-Value Work: 0.171
  • R-Value Observed: 0.173

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Structural Evaluation of a Nitroreductase Engineered for Improved Activation of the 5-Nitroimidazole PET Probe SN33623.

Sharrock, A.V.Mumm, J.S.Williams, E.M.Cenas, N.Smaill, J.B.Patterson, A.V.Ackerley, D.F.Bagdziunas, G.Arcus, V.L.

(2024) Int J Mol Sci 25

  • DOI: https://doi.org/10.3390/ijms25126593
  • Primary Citation of Related Structures:
    8V5B

  • PubMed Abstract:

    Bacterial nitroreductase enzymes capable of activating imaging probes and prodrugs are valuable tools for gene-directed enzyme prodrug therapies and targeted cell ablation models. We recently engineered a nitroreductase ( E. coli NfsB F70A/F108Y) for the substantially enhanced reduction of the 5-nitroimidazole PET-capable probe, SN33623, which permits the theranostic imaging of vectors labeled with oxygen-insensitive bacterial nitroreductases. This mutant enzyme also shows improved activation of the DNA-alkylation prodrugs CB1954 and metronidazole. To elucidate the mechanism behind these enhancements, we resolved the crystal structure of the mutant enzyme to 1.98 Å and compared it to the wild-type enzyme. Structural analysis revealed an expanded substrate access channel and new hydrogen bonding interactions. Additionally, computational modeling of SN33623, CB1954, and metronidazole binding in the active sites of both the mutant and wild-type enzymes revealed key differences in substrate orientations and interactions, with improvements in activity being mirrored by reduced distances between the N5-H of isoalloxazine and the substrate nitro group oxygen in the mutant models. These findings deepen our understanding of nitroreductase substrate specificity and catalytic mechanisms and have potential implications for developing more effective theranostic imaging strategies in cancer treatment.


  • Organizational Affiliation

    School of Biological Sciences, Victoria University of Wellington, Wellington 6012, New Zealand.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Dihydropteridine reductase
A, B, C, D
217Escherichia coliMutation(s): 2
Gene Names: nfsB
EC: 1 (UniProt), 1.5.1.34 (UniProt)
UniProt
Find proteins for A0A094VLP5 (Escherichia coli)
Explore A0A094VLP5
Go to UniProtKB:  A0A094VLP5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A094VLP5
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
P4K
Query on P4K

Download Ideal Coordinates CCD File
N [auth C]polyethylene glycol
C30 H62 O15
WWPGFZAAWXFBTF-UHFFFAOYSA-N
FMN (Subject of Investigation/LOI)
Query on FMN

Download Ideal Coordinates CCD File
E [auth A],
G [auth B],
I [auth C],
O [auth D]
FLAVIN MONONUCLEOTIDE
C17 H21 N4 O9 P
FVTCRASFADXXNN-SCRDCRAPSA-N
ACT
Query on ACT

Download Ideal Coordinates CCD File
F [auth A]
H [auth B]
J [auth C]
K [auth C]
L [auth C]
F [auth A],
H [auth B],
J [auth C],
K [auth C],
L [auth C],
M [auth C],
P [auth D],
Q [auth D]
ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
CL
Query on CL

Download Ideal Coordinates CCD File
R [auth D]CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.98 Å
  • R-Value Free: 0.219
  • R-Value Work: 0.171
  • R-Value Observed: 0.173
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 87.22α = 90
b = 95.59β = 90
c = 112.31γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
MOSFLMdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Marsden FundNew ZealandVUW1902
Other privateNew Zealand--

Revision History  (Full details and data files)

  • Version 1.0: 2024-10-09
    Type: Initial release
