9BOL

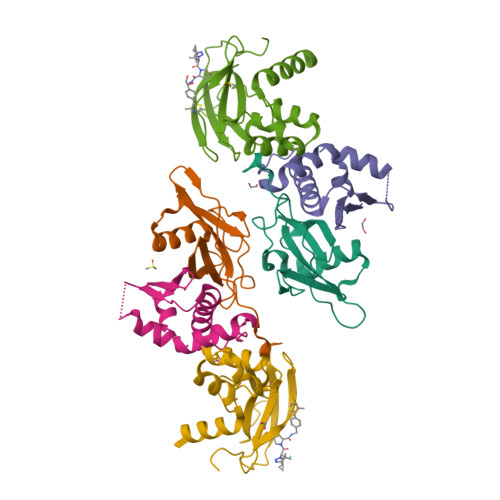

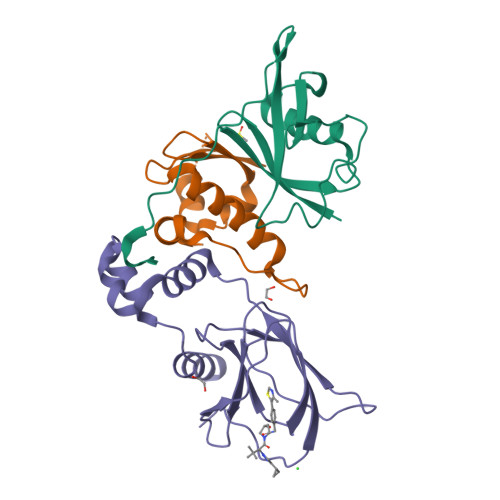

Crystal structure of the complex between VHL, ElonginB, ElonginC, and compound 5


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.99 Å
  • R-Value Free: 0.248
  • R-Value Work: 0.202
  • R-Value Observed: 0.204

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Potency-Enhanced Peptidomimetic VHL Ligands with Improved Oral Bioavailability.

Wu, H.Murray, J.Ishisoko, N.Frommlet, A.Deshmukh, G.DiPasquale, A.Mulvihill, M.M.Zhang, D.Quinn, J.G.Blake, R.A.Fairbrother, W.J.Fuhrmann, J.

(2024) J Med Chem 67: 8585-8608

  • DOI: https://doi.org/10.1021/acs.jmedchem.3c02203
  • Primary Citation of Related Structures:
    9BJU, 9BOL

  • PubMed Abstract:

    The von Hippel-Lindau (VHL) protein plays a pivotal role in regulating the hypoxic stress response and has been extensively studied and utilized in the targeted protein degradation field, particularly in the context of bivalent degraders. In this study, we present a comprehensive peptidomimetic structure-activity relationship (SAR) approach, combined with cellular NanoBRET target engagement assays to enhance the existing VHL ligands. Through systematic modifications of the molecule, we identified the 1,2,3-triazole group as an optimal substitute of the left-hand side amide bond that yields 10-fold higher binding activity. Moreover, incorporating conformationally constrained alterations on the methylthiazole benzylamine moiety led to the development of highly potent VHL ligands with picomolar binding affinity and significantly improved oral bioavailability. We anticipate that our optimized VHL ligand, GNE7599 , will serve as a valuable tool compound for investigating the VHL pathway and advancing the field of targeted protein degradation.


  • Organizational Affiliation

    Department of Early Discovery Biochemistry, Genentech, 1 DNA Way, South San Francisco, California 94080, United States.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Elongin-B
A, D
104Homo sapiensMutation(s): 0
Gene Names: ELOBTCEB2
UniProt & NIH Common Fund Data Resources
Find proteins for Q15370 (Homo sapiens)
Explore Q15370
Go to UniProtKB:  Q15370
PHAROS:  Q15370
GTEx:  ENSG00000103363
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15370
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Elongin-C
B, E
96Homo sapiensMutation(s): 0
Gene Names: ELOCTCEB1
UniProt & NIH Common Fund Data Resources
Find proteins for Q15369 (Homo sapiens)
Explore Q15369
Go to UniProtKB:  Q15369
PHAROS:  Q15369
GTEx:  ENSG00000154582
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15369
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
von Hippel-Lindau disease tumor suppressor
C, F
176Homo sapiensMutation(s): 0
Gene Names: VHL
UniProt & NIH Common Fund Data Resources
Find proteins for P40337 (Homo sapiens)
Explore P40337
Go to UniProtKB:  P40337
PHAROS:  P40337
GTEx:  ENSG00000134086
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40337
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1ARP (Subject of Investigation/LOI)
Query on A1ARP

Download Ideal Coordinates CCD File
L [auth C],
Q [auth F]
(4R)-1-[(2S)-2-(4-cyclopropyl-1H-1,2,3-triazol-1-yl)-3,3-dimethylbutanoyl]-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide
C27 H34 N6 O3 S
KTXIDFFZCOJFLJ-JCTONOIOSA-N
DMS
Query on DMS

Download Ideal Coordinates CCD File
J [auth C],
N [auth E]
DIMETHYL SULFOXIDE
C2 H6 O S
IAZDPXIOMUYVGZ-UHFFFAOYSA-N
EDO
Query on EDO

Download Ideal Coordinates CCD File
G [auth B],
H [auth B],
I [auth C],
M [auth E],
O [auth F]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
K [auth C],
P [auth F]
CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.99 Å
  • R-Value Free: 0.248
  • R-Value Work: 0.202
  • R-Value Observed: 0.204
  • Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 47.46α = 103.62
b = 47.74β = 94.66
c = 100.35γ = 98.33
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
STARANISOdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2024-05-29
    Type: Initial release
  • Version 1.1: 2024-10-16
    Changes: Database references, Structure summary
