9DWT | pdb_00009dwt

PKD2 ion channel, F634A mutant

• PDB DOI: https://doi.org/10.2210/pdb9DWT/pdb
• EM Map EMD-47264: EMDB EMDataResource

• Classification: MEMBRANE PROTEIN
• Organism(s): Homo sapiens
• Expression System: Homo sapiens
• Mutation(s): Yes


• Deposited: 2024-10-10 Released: 2026-01-21
• Deposition Author(s): Esarte Palomero, O., DeCaen, P.G.
• Funding Organization(s): National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.01 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Starting Model: in silico

Literature

PKD2 ion channel, F629S variant

Esarte Palomero, O., DeCaen, P.G.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C4  (Explore in 3D)
Global Stoichiometry: Homo 4-mer - A4

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 224.19 kDa
• Atom Count: 15,197
• Modeled Residue Count: 1,844
• Deposited Residue Count: 1,920
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

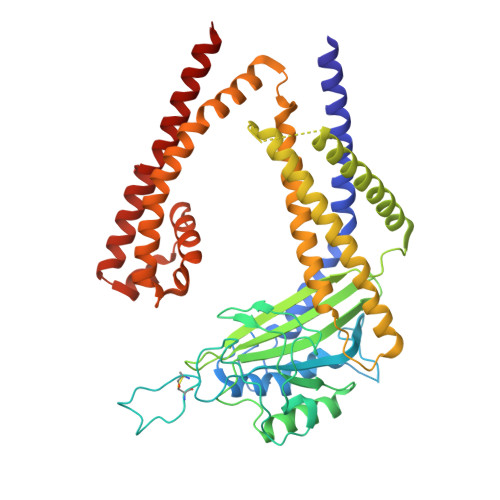

Polycystin-2	A, B, C, D	480	Homo sapiens	Mutation(s): 1  Gene Names: PKD2, TRPP2
UniProt & NIH Common Fund Data Resources
Find proteins for Q13563 (Homo sapiens) Explore Q13563  Go to UniProtKB:  Q13563
PHAROS:  Q13563 GTEx:  ENSG00000118762

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
CA (Subject of Investigation/LOI)	E [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.01 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC	4.5
MODEL REFINEMENT	ISOLDE	1.8
MODEL REFINEMENT	PHENIX	1.21.2

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2026-01-21
Deposition Author(s): Esarte Palomero, O., DeCaen, P.G.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)	United States	R01 DK131118-01
National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)	United States	R01 DK123463-01
National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)	United States	(F32DK137477-01A1
National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)	United States	TL1DK132769
National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)	United States	U2CDK129917

Revision History

• Version 1.0: 2026-01-21
  Type: Initial release
