9F5Y | pdb_00009f5y

Structure of the Chlamydomonas reinhardtii respiratory complex I from respiratory supercomplex

PDB DOI: https://doi.org/10.2210/pdb9F5Y/pdb
EM Map EMD-50203: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Chlamydomonas reinhardtii
Mutation(s): No
Membrane Protein: Yes PDBTM

Deposited: 2024-04-30 Released: 2025-03-12
Deposition Author(s): Waltz, F., Righetto, R., Kotecha, A., Engel, B.D.
Funding Organization(s): Alexander von Humboldt Foundation, Swiss National Science Foundation

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.51 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

In-cell architecture of the mitochondrial respiratory chain

Waltz, F., Righetto, R., Lamm, L., Salinas-Giege, T., Kelley, R., Zhang, X., Obr, M., Khavnekar, S., Kotecha, A., Engel, B.D.

(2025) Science

DOI: https://doi.org/10.1126/science.ads8738

Macromolecule Content

Total Structure Weight: 1,181.72 kDa
Atom Count: 75,117
Modelled Residue Count: 9,058
Deposited Residue Count: 10,307
Unique protein chains: 50

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH:ubiquinone oxidoreductase 24 kD subunit	A	282	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 Membrane Entity: Yes
UniProt
Find proteins for Q6V9B3 (Chlamydomonas reinhardtii) Explore Q6V9B3 Go to UniProtKB: Q6V9B3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6V9B3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH dehydrogenase [ubiquinone] flavoprotein 1, mitochondrial	B	484	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 7.1.1.2 Membrane Entity: Yes
UniProt
Find proteins for A8ICJ1 (Chlamydomonas reinhardtii) Explore A8ICJ1 Go to UniProtKB: A8ICJ1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A8ICJ1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH:ubiquinone oxidoreductase 78 kDa subunit	C	733	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data)
UniProt
Find proteins for Q6UKY6 (Chlamydomonas reinhardtii) Explore Q6UKY6 Go to UniProtKB: Q6UKY6
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6UKY6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH:ubiquinone oxidoreductase 30kDa subunit domain-containing protein	D	282	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for A8IHL3 (Chlamydomonas reinhardtii) Explore A8IHL3 Go to UniProtKB: A8IHL3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A8IHL3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH:ubiquinone oxidoreductase 49 kD subunit	E	467	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3
UniProt
Find proteins for Q6V9A8 (Chlamydomonas reinhardtii) Explore Q6V9A8 Go to UniProtKB: Q6V9A8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6V9A8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH:ubiquinone oxidoreductase subunit 10	F	164	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3
UniProt
Find proteins for Q6V9B0 (Chlamydomonas reinhardtii) Explore Q6V9B0 Go to UniProtKB: Q6V9B0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6V9B0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH:ubiquinone oxidoreductase subunit 8	G	231	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3
UniProt
Find proteins for Q6V9B1 (Chlamydomonas reinhardtii) Explore Q6V9B1 Go to UniProtKB: Q6V9B1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6V9B1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
B14.5a	H	118	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for A8JHV4 (Chlamydomonas reinhardtii) Explore A8JHV4 Go to UniProtKB: A8JHV4
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A8JHV4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

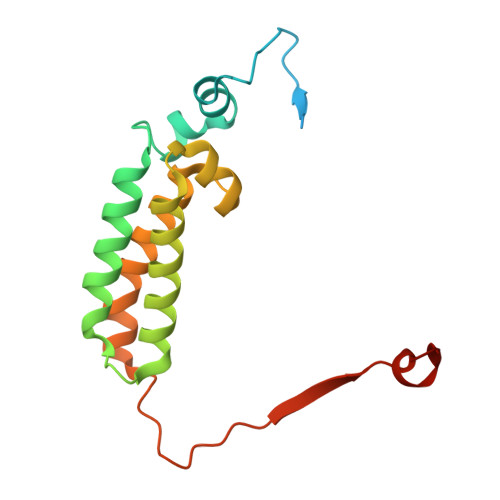

Mitochondrial NADH:ubiquinone oxidoreductase 18 kDa subunit	I	165	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 Membrane Entity: Yes
UniProt
Find proteins for Q6UKY3 (Chlamydomonas reinhardtii) Explore Q6UKY3 Go to UniProtKB: Q6UKY3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6UKY3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image
Acyl carrier protein	J, RA [auth r]	128	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for Q6UKY4 (Chlamydomonas reinhardtii) Explore Q6UKY4 Go to UniProtKB: Q6UKY4
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6UKY4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH:ubiquinone oxidoreductase B14 subunit	K	138	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data) Membrane Entity: Yes
UniProt
Find proteins for Q6UKY9 (Chlamydomonas reinhardtii) Explore Q6UKY9 Go to UniProtKB: Q6UKY9
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6UKY9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH dehydrogenase [ubiquinone] iron-sulfur protein 4, mitochondrial	L	187	Chlamydomonas reinhardtii	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for Q6UP29 (Chlamydomonas reinhardtii) Explore Q6UP29 Go to UniProtKB: Q6UP29
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6UP29
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH:ubiquinone oxidoreductase 13 kD-like subunit	M	154	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data)
UniProt
Find proteins for Q6UP30 (Chlamydomonas reinhardtii) Explore Q6UP30 Go to UniProtKB: Q6UP30
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6UP30
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 12	N	156	Chlamydomonas reinhardtii	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for Q6UP31 (Chlamydomonas reinhardtii) Explore Q6UP31 Go to UniProtKB: Q6UP31
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6UP31
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH:ubiquinone oxidoreductase B8 subunit	O	101	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 Membrane Entity: Yes
UniProt
Find proteins for Q6V9A9 (Chlamydomonas reinhardtii) Explore Q6V9A9 Go to UniProtKB: Q6V9A9
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6V9A9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image
Putative NADH:ubiquinone oxidoreductase 39 kDa subunit	P	397	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for Q6V506 (Chlamydomonas reinhardtii) Explore Q6V506 Go to UniProtKB: Q6V506
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6V506
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH-ubiquinone oxidoreductase chain 1	Q	292	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 7.1.1.2 Membrane Entity: Yes
UniProt
Find proteins for P11658 (Chlamydomonas reinhardtii) Explore P11658 Go to UniProtKB: P11658
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P11658
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH-ubiquinone oxidoreductase chain 2	R	387	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 7.1.1.2 Membrane Entity: Yes
UniProt
Find proteins for P08740 (Chlamydomonas reinhardtii) Explore P08740 Go to UniProtKB: P08740
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P08740
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH-ubiquinone oxidoreductase chain 3	S	279	Chlamydomonas reinhardtii	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for Q6V502 (Chlamydomonas reinhardtii) Explore Q6V502 Go to UniProtKB: Q6V502
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6V502
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH-ubiquinone oxidoreductase chain 4	T	443	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 7.1.1.2 Membrane Entity: Yes
UniProt
Find proteins for P20113 (Chlamydomonas reinhardtii) Explore P20113 Go to UniProtKB: P20113
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P20113
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 21
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH dehydrogenase subunit 4L	U	227	Chlamydomonas reinhardtii	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for Q84K56 (Chlamydomonas reinhardtii) Explore Q84K56 Go to UniProtKB: Q84K56
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q84K56
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 22
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH-ubiquinone oxidoreductase chain 5	V	546	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 7.1.1.2 Membrane Entity: Yes
UniProt
Find proteins for P08739 (Chlamydomonas reinhardtii) Explore P08739 Go to UniProtKB: P08739
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P08739
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 23
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH-ubiquinone oxidoreductase chain 6	W	162	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 7.1.1.2 Membrane Entity: Yes
UniProt
Find proteins for P10329 (Chlamydomonas reinhardtii) Explore P10329 Go to UniProtKB: P10329
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P10329
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 24
Molecule	Chains	Sequence Length	Organism	Details	Image
ASHI	X	149	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for A8JCW1 (Chlamydomonas reinhardtii) Explore A8JCW1 Go to UniProtKB: A8JCW1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A8JCW1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 25
Molecule	Chains	Sequence Length	Organism	Details	Image
P9	Y	64	Chlamydomonas reinhardtii	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for A0A2K3DYZ8 (Chlamydomonas reinhardtii) Explore A0A2K3DYZ8 Go to UniProtKB: A0A2K3DYZ8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A2K3DYZ8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 26
Molecule	Chains	Sequence Length	Organism	Details	Image
KFYI	Z	124	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for A8J6N0 (Chlamydomonas reinhardtii) Explore A8J6N0 Go to UniProtKB: A8J6N0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A8J6N0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 27
Molecule	Chains	Sequence Length	Organism	Details	Image
AGGG	AA [auth a]	129	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for A8J815 (Chlamydomonas reinhardtii) Explore A8J815 Go to UniProtKB: A8J815
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A8J815
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 28
Molecule	Chains	Sequence Length	Organism	Details	Image
ESSS	BA [auth b]	172	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for A8J843 (Chlamydomonas reinhardtii) Explore A8J843 Go to UniProtKB: A8J843
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A8J843
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 29
Molecule	Chains	Sequence Length	Organism	Details	Image
B9	CA [auth c]	67	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for A8IVG9 (Chlamydomonas reinhardtii) Explore A8IVG9 Go to UniProtKB: A8IVG9
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A8IVG9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 30
Molecule	Chains	Sequence Length	Organism	Details	Image
Mitochondrial NADH:ubiquinone oxidoreductase 10 kDa subunit	DA [auth d]	86	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data)
UniProt
Find proteins for Q6QAY2 (Chlamydomonas reinhardtii) Explore Q6QAY2 Go to UniProtKB: Q6QAY2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6QAY2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 31
Molecule	Chains	Sequence Length	Organism	Details	Image
Mitochondrial NADH:ubiquinone oxidoreductase 23 kDa subunit	EA [auth e]	219	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data) Membrane Entity: Yes
UniProt
Find proteins for Q6QAY4 (Chlamydomonas reinhardtii) Explore Q6QAY4 Go to UniProtKB: Q6QAY4
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6QAY4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 32
Molecule	Chains	Sequence Length	Organism	Details	Image
Mitochondrial NADH:ubiquinone oxidoreductase 7.5 kDa subunit	FA [auth f]	65	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data) Membrane Entity: Yes
UniProt
Find proteins for Q6QIV4 (Chlamydomonas reinhardtii) Explore Q6QIV4 Go to UniProtKB: Q6QIV4
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6QIV4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 33
Molecule	Chains	Sequence Length	Organism	Details	Image
Mitochondrial putative NADH:ubiquinone oxidoreductase 6.5 kDa subunit	GA [auth g]	55	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data) Membrane Entity: Yes
UniProt
Find proteins for Q6QIV8 (Chlamydomonas reinhardtii) Explore Q6QIV8 Go to UniProtKB: Q6QIV8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6QIV8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 34
Molecule	Chains	Sequence Length	Organism	Details	Image
Mitochondrial NADH:ubiquinone oxidoreductase 13 kDa subunit	HA [auth h]	142	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data) Membrane Entity: Yes
UniProt
Find proteins for Q6QIV9 (Chlamydomonas reinhardtii) Explore Q6QIV9 Go to UniProtKB: Q6QIV9
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6QIV9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 35
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH:ubiquinone oxidoreductase 15 kDa subunit-like	IA [auth i]	81	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data) Membrane Entity: Yes
UniProt
Find proteins for Q6TH88 (Chlamydomonas reinhardtii) Explore Q6TH88 Go to UniProtKB: Q6TH88
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6TH88
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 36
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 7	JA [auth j]	86	Chlamydomonas reinhardtii	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for Q6UKY7 (Chlamydomonas reinhardtii) Explore Q6UKY7 Go to UniProtKB: Q6UKY7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6UKY7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 37
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH dehydrogenase [ubiquinone] 1 beta subcomplex subunit 9	KA [auth k]	117	Chlamydomonas reinhardtii	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for Q6UKY8 (Chlamydomonas reinhardtii) Explore Q6UKY8 Go to UniProtKB: Q6UKY8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6UKY8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 38
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH:ubiquinone oxidoreductase 20,9 kD-like subunit	LA [auth l]	121	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data) Membrane Entity: Yes
UniProt
Find proteins for Q6UP28 (Chlamydomonas reinhardtii) Explore Q6UP28 Go to UniProtKB: Q6UP28
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6UP28
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 39
Molecule	Chains	Sequence Length	Organism	Details	Image
NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 13	MA [auth m]	142	Chlamydomonas reinhardtii	Mutation(s): 0 Membrane Entity: Yes
UniProt
Find proteins for Q6UP32 (Chlamydomonas reinhardtii) Explore Q6UP32 Go to UniProtKB: Q6UP32
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6UP32
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 40
Molecule	Chains	Sequence Length	Organism	Details	Image
Putative NADH:ubiquinone oxidoreductase 12.5 kDa subunit	NA [auth n]	106	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for Q6V504 (Chlamydomonas reinhardtii) Explore Q6V504 Go to UniProtKB: Q6V504
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6V504
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 41
Molecule	Chains	Sequence Length	Organism	Details	Image
Putative NADH:ubiquinone oxidoreductase 17.8 kDa subunit	OA [auth o]	155	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for Q6V505 (Chlamydomonas reinhardtii) Explore Q6V505 Go to UniProtKB: Q6V505
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6V505
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 42
Molecule	Chains	Sequence Length	Organism	Details	Image
Mitochondrial NADH:ubiquinone oxidoreductase 16 kDa subunit	PA [auth p]	130	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data)
UniProt
Find proteins for Q6QAY0 (Chlamydomonas reinhardtii) Explore Q6QAY0 Go to UniProtKB: Q6QAY0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6QAY0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 43
Molecule	Chains	Sequence Length	Organism	Details	Image
Mitochondrial NADH:ubiquinone oxidoreductase 19 kDa subunit	QA [auth q]	197	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data)
UniProt
Find proteins for Q6QAY1 (Chlamydomonas reinhardtii) Explore Q6QAY1 Go to UniProtKB: Q6QAY1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6QAY1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 44
Molecule	Chains	Sequence Length	Organism	Details	Image
Mitochondrial NADH:ubiquinone oxidoreductase 32 kDa subunit	SA [auth s]	312	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data)
UniProt
Find proteins for Q6S7R7 (Chlamydomonas reinhardtii) Explore Q6S7R7 Go to UniProtKB: Q6S7R7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6S7R7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 45
Molecule	Chains	Sequence Length	Organism	Details	Image
CAG2 - CA-like	TA [auth t]	279	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for A8JFK6 (Chlamydomonas reinhardtii) Explore A8JFK6 Go to UniProtKB: A8JFK6
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A8JFK6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 46
Molecule	Chains	Sequence Length	Organism	Details	Image
CAG1	UA [auth u]	229	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for A8JHY4 (Chlamydomonas reinhardtii) Explore A8JHY4 Go to UniProtKB: A8JHY4
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A8JHY4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 47
Molecule	Chains	Sequence Length	Organism	Details	Image
P10	VA [auth v]	45	Chlamydomonas reinhardtii	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 48
Molecule	Chains	Sequence Length	Organism	Details	Image
Mitochondrial NADH:ubiquinone oxidoreductase 9 kDa subunit	WA [auth w]	109	Chlamydomonas reinhardtii	Mutation(s): 0 EC: 1.6.5.3 (PDB Primary Data), 1.6.99.3 (PDB Primary Data)
UniProt
Find proteins for Q6QAY5 (Chlamydomonas reinhardtii) Explore Q6QAY5 Go to UniProtKB: Q6QAY5
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6QAY5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

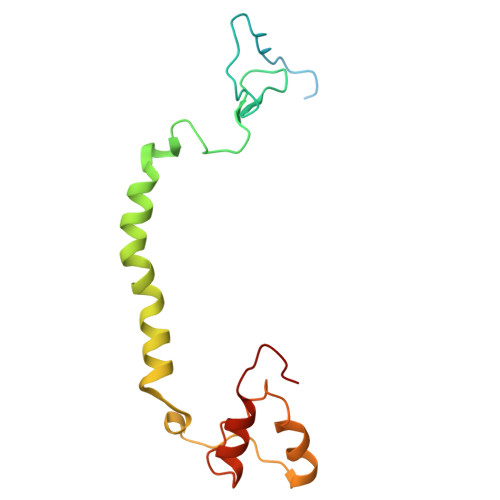

Entity ID: 49
Molecule	Chains	Sequence Length	Organism	Details	Image
NUOP8	XA [auth x]	157	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for A8IS53 (Chlamydomonas reinhardtii) Explore A8IS53 Go to UniProtKB: A8IS53
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A8IS53
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

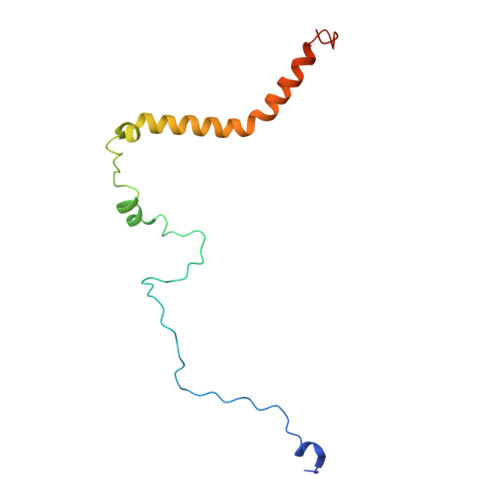

Entity ID: 50
Molecule	Chains	Sequence Length	Organism	Details	Image
NUOP7	YA [auth y]	118	Chlamydomonas reinhardtii	Mutation(s): 0
UniProt
Find proteins for A8JA22 (Chlamydomonas reinhardtii) Explore A8JA22 Go to UniProtKB: A8JA22
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A8JA22
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 13 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
CDL Query on CDL Download Ideal Coordinates CCD File SDF format, chain AD [auth y] SDF format, chain DC [auth V] SDF format, chain HC [auth W] SDF format, chain PC [auth h] SDF format, chain RB [auth R] SDF format, chain VC [auth u] SDF format, chain WC [auth u] SDF format, chain YC [auth x] MOL2 format, chain AD [auth y] MOL2 format, chain DC [auth V] MOL2 format, chain HC [auth W] MOL2 format, chain PC [auth h] MOL2 format, chain RB [auth R] MOL2 format, chain VC [auth u] MOL2 format, chain WC [auth u] MOL2 format, chain YC [auth x] mmCIF format, chain AD [auth y] mmCIF format, chain DC [auth V] mmCIF format, chain HC [auth W] mmCIF format, chain PC [auth h] mmCIF format, chain RB [auth R] mmCIF format, chain VC [auth u] mmCIF format, chain WC [auth u] mmCIF format, chain YC [auth x]	AD [auth y] DC [auth V] HC [auth W] PC [auth h] RB [auth R] AD [auth y], DC [auth V], HC [auth W], PC [auth h], RB [auth R], VC [auth u], WC [auth u], YC [auth x]	CARDIOLIPIN C₈₁ H₁₅₆ O₁₇ P₂ XVTUQDWPJJBEHJ-KZCWQMDCSA-L		Interactions Focus chain AD [auth y] Focus chain DC [auth V] Focus chain HC [auth W] Focus chain PC [auth h] Focus chain RB [auth R] Focus chain VC [auth u] Focus chain WC [auth u] Focus chain YC [auth x] Interactions & Density Focus chain AD [auth y] Focus chain DC [auth V] Focus chain HC [auth W] Focus chain PC [auth h] Focus chain RB [auth R] Focus chain VC [auth u] Focus chain WC [auth u] Focus chain YC [auth x]
COO Query on COO Download Ideal Coordinates CCD File SDF format, chain SC [auth s] MOL2 format, chain SC [auth s] mmCIF format, chain SC [auth s]	SC [auth s]	CROTONYL COENZYME A C₂₅ H₄₀ N₇ O₁₇ P₃ S KFWWCMJSYSSPSK-XBTRWLRFSA-N		Interactions Focus chain SC [auth s] Interactions & Density Focus chain SC [auth s]
PC7 Query on PC7 Download Ideal Coordinates CCD File SDF format, chain MB [auth Q] SDF format, chain PB [auth R] SDF format, chain UC [auth u] SDF format, chain XB [auth T] MOL2 format, chain MB [auth Q] MOL2 format, chain PB [auth R] MOL2 format, chain UC [auth u] MOL2 format, chain XB [auth T] mmCIF format, chain MB [auth Q] mmCIF format, chain PB [auth R] mmCIF format, chain UC [auth u] mmCIF format, chain XB [auth T]	MB [auth Q], PB [auth R], UC [auth u], XB [auth T]	(7S)-4-HYDROXY-N,N,N-TRIMETHYL-9-OXO-7-[(PALMITOYLOXY)METHYL]-3,5,8-TRIOXA-4-PHOSPHAHEXACOSAN-1-AMINIUM 4-OXIDE C₄₂ H₈₅ N O₈ P PZNPLUBHRSSFHT-FAIXQHPJSA-O		Interactions Focus chain MB [auth Q] Focus chain PB [auth R] Focus chain UC [auth u] Focus chain XB [auth T] Interactions & Density Focus chain MB [auth Q] Focus chain PB [auth R] Focus chain UC [auth u] Focus chain XB [auth T]
PGT Query on PGT Download Ideal Coordinates CCD File SDF format, chain QC [auth l] SDF format, chain IC [auth b] SDF format, chain WB [auth T] SDF format, chain ZB [auth T] MOL2 format, chain QC [auth l] MOL2 format, chain IC [auth b] MOL2 format, chain WB [auth T] MOL2 format, chain ZB [auth T] mmCIF format, chain QC [auth l] mmCIF format, chain IC [auth b] mmCIF format, chain WB [auth T] mmCIF format, chain ZB [auth T]	IC [auth b], QC [auth l], WB [auth T], ZB [auth T]	(1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE C₄₀ H₇₉ O₁₀ P KBPVYRBBONZJHF-AMAPPZPBSA-N		Interactions Focus chain IC [auth b] Focus chain QC [auth l] Focus chain WB [auth T] Focus chain ZB [auth T] Interactions & Density Focus chain IC [auth b] Focus chain QC [auth l] Focus chain WB [auth T] Focus chain ZB [auth T]
NDP Query on NDP Download Ideal Coordinates CCD File SDF format, chain KB [auth P] MOL2 format, chain KB [auth P] mmCIF format, chain KB [auth P]	KB [auth P]	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE C₂₁ H₃₀ N₇ O₁₇ P₃ ACFIXJIJDZMPPO-NNYOXOHSSA-N		Interactions Focus chain KB [auth P] Interactions & Density Focus chain KB [auth P]
PTY Query on PTY Download Ideal Coordinates CCD File SDF format, chain IB [auth G] SDF format, chain LC [auth e] SDF format, chain OB [auth R] SDF format, chain UB [auth S] SDF format, chain YB [auth T] SDF format, chain AC [auth T] SDF format, chain EC [auth V] SDF format, chain FC [auth V] SDF format, chain GC [auth V] SDF format, chain KC [auth e] SDF format, chain OC [auth h] SDF format, chain QB [auth R] SDF format, chain SB [auth R] SDF format, chain VB [auth T] SDF format, chain ZC [auth x] MOL2 format, chain IB [auth G] MOL2 format, chain LC [auth e] MOL2 format, chain OB [auth R] MOL2 format, chain UB [auth S] MOL2 format, chain YB [auth T] MOL2 format, chain AC [auth T] MOL2 format, chain EC [auth V] MOL2 format, chain FC [auth V] MOL2 format, chain GC [auth V] MOL2 format, chain KC [auth e] MOL2 format, chain OC [auth h] MOL2 format, chain QB [auth R] MOL2 format, chain SB [auth R] MOL2 format, chain VB [auth T] MOL2 format, chain ZC [auth x] mmCIF format, chain IB [auth G] mmCIF format, chain LC [auth e] mmCIF format, chain OB [auth R] mmCIF format, chain UB [auth S] mmCIF format, chain YB [auth T] mmCIF format, chain AC [auth T] mmCIF format, chain EC [auth V] mmCIF format, chain FC [auth V] mmCIF format, chain GC [auth V] mmCIF format, chain KC [auth e] mmCIF format, chain OC [auth h] mmCIF format, chain QB [auth R] mmCIF format, chain SB [auth R] mmCIF format, chain VB [auth T] mmCIF format, chain ZC [auth x]	AC [auth T] EC [auth V] FC [auth V] GC [auth V] IB [auth G] AC [auth T], EC [auth V], FC [auth V], GC [auth V], IB [auth G], KC [auth e], LC [auth e], OB [auth R], OC [auth h], QB [auth R], SB [auth R], UB [auth S], VB [auth T], YB [auth T], ZC [auth x]	PHOSPHATIDYLETHANOLAMINE C₄₀ H₈₀ N O₈ P NJGIRBISCGPRPF-KXQOOQHDSA-N		Interactions Focus chain AC [auth T] Focus chain EC [auth V] Focus chain FC [auth V] Focus chain GC [auth V] Focus chain IB [auth G] Focus chain KC [auth e] Focus chain LC [auth e] Focus chain OB [auth R] Focus chain OC [auth h] Focus chain QB [auth R] Focus chain SB [auth R] Focus chain UB [auth S] Focus chain VB [auth T] Focus chain YB [auth T] Focus chain ZC [auth x] Interactions & Density Focus chain AC [auth T] Focus chain EC [auth V] Focus chain FC [auth V] Focus chain GC [auth V] Focus chain IB [auth G] Focus chain KC [auth e] Focus chain LC [auth e] Focus chain OB [auth R] Focus chain OC [auth h] Focus chain QB [auth R] Focus chain SB [auth R] Focus chain UB [auth S] Focus chain VB [auth T] Focus chain YB [auth T] Focus chain ZC [auth x]
3PH Query on 3PH Download Ideal Coordinates CCD File SDF format, chain CC [auth V] SDF format, chain MC [auth g] SDF format, chain BC [auth V] SDF format, chain JC [auth c] SDF format, chain NB [auth R] SDF format, chain NC [auth h] SDF format, chain TB [auth S] SDF format, chain XC [auth w] MOL2 format, chain CC [auth V] MOL2 format, chain MC [auth g] MOL2 format, chain BC [auth V] MOL2 format, chain JC [auth c] MOL2 format, chain NB [auth R] MOL2 format, chain NC [auth h] MOL2 format, chain TB [auth S] MOL2 format, chain XC [auth w] mmCIF format, chain CC [auth V] mmCIF format, chain MC [auth g] mmCIF format, chain BC [auth V] mmCIF format, chain JC [auth c] mmCIF format, chain NB [auth R] mmCIF format, chain NC [auth h] mmCIF format, chain TB [auth S] mmCIF format, chain XC [auth w]	BC [auth V] CC [auth V] JC [auth c] MC [auth g] NB [auth R] BC [auth V], CC [auth V], JC [auth c], MC [auth g], NB [auth R], NC [auth h], TB [auth S], XC [auth w]	1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE C₃₉ H₇₇ O₈ P YFWHNAWEOZTIPI-DIPNUNPCSA-N		Interactions Focus chain BC [auth V] Focus chain CC [auth V] Focus chain JC [auth c] Focus chain MC [auth g] Focus chain NB [auth R] Focus chain NC [auth h] Focus chain TB [auth S] Focus chain XC [auth w] Interactions & Density Focus chain BC [auth V] Focus chain CC [auth V] Focus chain JC [auth c] Focus chain MC [auth g] Focus chain NB [auth R] Focus chain NC [auth h] Focus chain TB [auth S] Focus chain XC [auth w]
8Q1 Query on 8Q1 Download Ideal Coordinates CCD File SDF format, chain JB [auth J] SDF format, chain RC [auth r] MOL2 format, chain JB [auth J] MOL2 format, chain RC [auth r] mmCIF format, chain JB [auth J] mmCIF format, chain RC [auth r]	JB [auth J], RC [auth r]	S-[2-({N-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-beta-alanyl}amino)ethyl] dodecanethioate C₂₃ H₄₅ N₂ O₈ P S MVHUOSAYFQKAMT-NRFANRHFSA-N		Interactions Focus chain JB [auth J] Focus chain RC [auth r] Interactions & Density Focus chain JB [auth J] Focus chain RC [auth r]
UQ5 Query on UQ5 Download Ideal Coordinates CCD File SDF format, chain LB [auth Q] MOL2 format, chain LB [auth Q] mmCIF format, chain LB [auth Q]	LB [auth Q]	2,3-DIMETHOXY-5-METHYL-6-(3,11,15,19-TETRAMETHYL-EICOSA-2,6,10,14,18-PENTAENYL)-[1,4]BENZOQUINONE C₃₄ H₅₀ O₄ NYFAQDMDAFCWPU-UVCHAVPFSA-N		Interactions Focus chain LB [auth Q] Interactions & Density Focus chain LB [auth Q]
FMN Query on FMN Download Ideal Coordinates CCD File SDF format, chain AB [auth B] MOL2 format, chain AB [auth B] mmCIF format, chain AB [auth B]	AB [auth B]	FLAVIN MONONUCLEOTIDE C₁₇ H₂₁ N₄ O₉ P FVTCRASFADXXNN-SCRDCRAPSA-N		Interactions Focus chain AB [auth B] Interactions & Density Focus chain AB [auth B]
SF4 Query on SF4 Download Ideal Coordinates CCD File SDF format, chain FB [auth F] SDF format, chain BB [auth B] SDF format, chain DB [auth C] SDF format, chain EB [auth C] SDF format, chain GB [auth G] SDF format, chain HB [auth G] MOL2 format, chain FB [auth F] MOL2 format, chain BB [auth B] MOL2 format, chain DB [auth C] MOL2 format, chain EB [auth C] MOL2 format, chain GB [auth G] MOL2 format, chain HB [auth G] mmCIF format, chain FB [auth F] mmCIF format, chain BB [auth B] mmCIF format, chain DB [auth C] mmCIF format, chain EB [auth C] mmCIF format, chain GB [auth G] mmCIF format, chain HB [auth G]	BB [auth B] DB [auth C] EB [auth C] FB [auth F] GB [auth G] BB [auth B], DB [auth C], EB [auth C], FB [auth F], GB [auth G], HB [auth G]	IRON/SULFUR CLUSTER Fe₄ S₄ LJBDFODJNLIPKO-UHFFFAOYSA-N		Interactions Focus chain BB [auth B] Focus chain DB [auth C] Focus chain EB [auth C] Focus chain FB [auth F] Focus chain GB [auth G] Focus chain HB [auth G] Interactions & Density Focus chain BB [auth B] Focus chain DB [auth C] Focus chain EB [auth C] Focus chain FB [auth F] Focus chain GB [auth G] Focus chain HB [auth G]
FES Query on FES Download Ideal Coordinates CCD File SDF format, chain CB [auth C] SDF format, chain ZA [auth A] MOL2 format, chain CB [auth C] MOL2 format, chain ZA [auth A] mmCIF format, chain CB [auth C] mmCIF format, chain ZA [auth A]	CB [auth C], ZA [auth A]	FE2/S2 (INORGANIC) CLUSTER Fe₂ S₂ NIXDOXVAJZFRNF-UHFFFAOYSA-N		Interactions Focus chain CB [auth C] Focus chain ZA [auth A] Interactions & Density Focus chain CB [auth C] Focus chain ZA [auth A]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain TC [auth s] MOL2 format, chain TC [auth s] mmCIF format, chain TC [auth s]	TC [auth s]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain TC [auth s] Interactions & Density Focus chain TC [auth s]
