9W5C | pdb_00009w5c

Complex structure of MAGI3 WW1 and IQSEC3 PPxY motif

PDB DOI: https://doi.org/10.2210/pdb9W5C/pdb

Classification: PROTEIN BINDING
Organism(s): Rattus norvegicus, Mus musculus
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-08-01 Released: 2026-02-25
Deposition Author(s): Wang, J., Lin, L., Zhu, J.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.10 Å
R-Value Free:
0.218 (Depositor), 0.218 (DCC)
R-Value Work:
0.180 (Depositor), 0.182 (DCC)
R-Value Observed:
0.184 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structural and Biochemical Dissection of MAGI WW1-IQSEC3 Interactions

Wang, J., Lin, L., Zhu, J.

To be published.

Macromolecule Content

Total Structure Weight: 43.39 kDa
Atom Count: 2,656
Modeled Residue Count: 303
Deposited Residue Count: 372
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

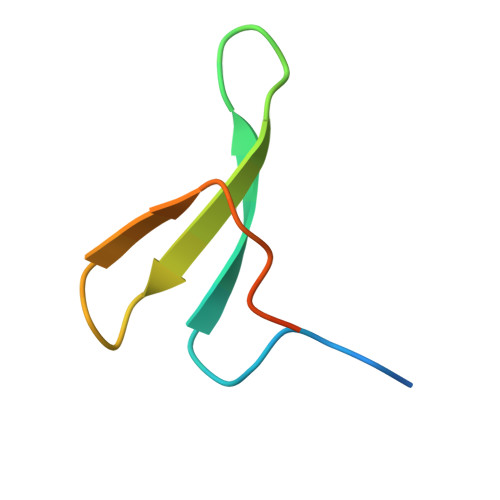

Membrane-associated guanylate kinase, WW and PDZ domain-containing protein 3	A, C, E, G, I A, C, E, G, I, K	44	Rattus norvegicus	Mutation(s): 0 Gene Names: Magi3, Slipr
UniProt
Find proteins for Q9JK71 (Rattus norvegicus) Explore Q9JK71 Go to UniProtKB: Q9JK71
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9JK71
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

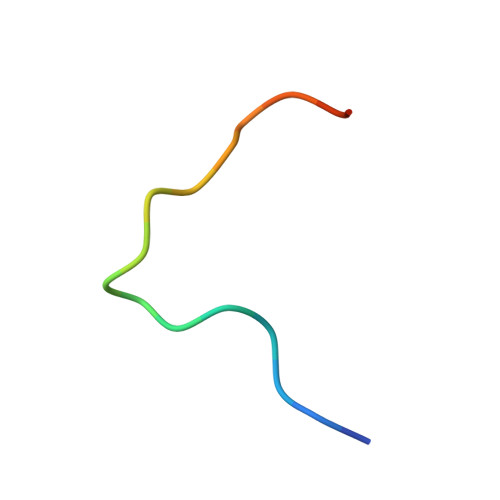

IQ motif and SEC7 domain-containing protein 3	B, D, F, H, J B, D, F, H, J, L	18	Mus musculus	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q3TES0 (Mus musculus) Explore Q3TES0 Go to UniProtKB: Q3TES0
IMPC: MGI:2677208
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q3TES0
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.10 Å
R-Value Free: 0.218 (Depositor), 0.218 (DCC)
R-Value Work: 0.180 (Depositor), 0.182 (DCC)
R-Value Observed: 0.184 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 84.472	α = 90
b = 78.971	β = 93.52
c = 48.78	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-2000	data scaling
PHASER	phasing
PDB_EXTRACT	data extraction
HKL-2000	data reduction

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2026-02-25

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-02-25
Type: Initial release
