9WRR | pdb_00009wrr

SS-ROX structure analysis of H-Ras using caged-compound complex: 28 hr after UV light irradiation (GDP bound form)

• PDB DOI: https://doi.org/10.2210/pdb9WRR/pdb

• Classification: SIGNALING PROTEIN
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2025-09-12 Released: 2026-09-16
• Deposition Author(s): Kawamura, T., Kumasaka, T.
• Funding Organization(s): Japan Agency for Medical Research and Development (AMED), Japan Society for the Promotion of Science (JSPS)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.50 Å
• R-Value Free:
  0.228 (Depositor), 0.228 (DCC)
• R-Value Work:
  0.197 (Depositor), 0.197 (DCC)
• R-Value Observed:
  0.199 (Depositor)

Starting Model: experimental

Literature

Observation of Ras protein GTP hydrolysis and conformation change

Kawamura, T., Sakisaka, W., Makono, Y., Yoshikawa, Y., Kumasaka, T., Shima, F.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 19.91 kDa
• Atom Count: 1,253
• Modeled Residue Count: 154
• Deposited Residue Count: 171
• Unique protein chains: 1

Macromolecules

Entity ID: 1

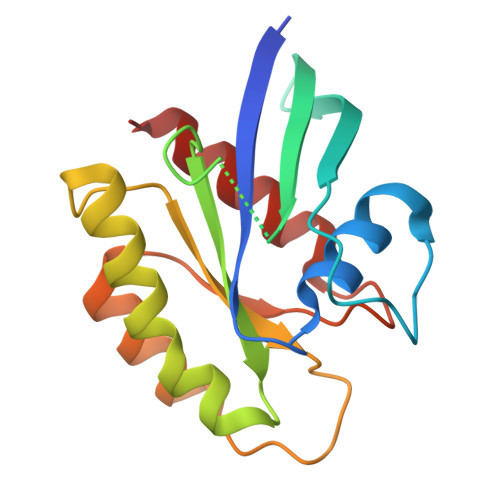

Molecule	Chains	Sequence Length	Organism	Details	Image
GTPase HRas	A	171	Homo sapiens	Mutation(s): 0  Gene Names: HRAS, HRAS1 EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01112 (Homo sapiens) Explore P01112  Go to UniProtKB:  P01112
PHAROS:  P01112 GTEx:  ENSG00000174775

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
GDP (Subject of Investigation/LOI)	C [auth A]	GUANOSINE-5'-DIPHOSPHATE C10 H15 N5 O11 P2 QGWNDRXFNXRZMB-UUOKFMHZSA-N
CA	D [auth A], E [auth A], F [auth A], G [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N
MG	B [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.50 Å
• R-Value Free:  0.228 (Depositor), 0.228 (DCC)
• R-Value Work:  0.197 (Depositor), 0.197 (DCC)
• R-Value Observed: 0.199 (Depositor)

Space Group: H 3 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 93.436	α = 90
b = 93.436	β = 90
c = 122.847	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
CrystFEL	data reduction
CrystFEL	data scaling
PHASER	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-09-16
Deposition Author(s): Kawamura, T., Kumasaka, T.

---

Funding Organization	Location	Grant Number
Japan Agency for Medical Research and Development (AMED)	Japan	JP25ama121001
Japan Society for the Promotion of Science (JSPS)	Japan	26293026

Revision History

• Version 1.0: 2026-09-16
  Type: Initial release
