9WVE | pdb_00009wve

Crystal structure of HLA-A*11:01 in complex with KRAS G12A 10-mer peptide (VVVGAAGVGK)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.80 Å
  • R-Value Free:
    0.267 (Depositor), 0.267 (DCC)
  • R-Value Work:
    0.247 (Depositor), 0.247 (DCC)
  • R-Value Observed:
    0.248 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Structure guided analysis of KRAS G12 mutants in HLA-A*11:01 reveals a length encoded immunogenic advantage in G12D.

Zhu, J.Chen, Z.Xu, X.Wang, Y.Liu, P.Wen, M.Wang, Q.He, Y.Jin, H.Xue, H.Wang, S.Xu, K.Zhao, L.

(2025) Commun Biol

  • DOI: https://doi.org/10.1038/s42003-025-09285-0
  • Primary Citation of Related Structures:
    8K4T, 8K4V, 8K50, 9UV8, 9WVE, 9WVF

  • PubMed Abstract:

    KRAS G12 mutations are frequent oncogenic drivers, yet their differential immunogenicity complicates T cell-based therapies. Here, we integrate structural, biophysical, and functional analyses to examine how KRAS G12 variants remodel peptide-MHC-I (pMHC) architecture and T cell receptor (TCR) recognition. Using HLA-A*11:01, we show that single residue substitutions at position 12 induce distinct conformational changes in the MHC groove, with G12D uniquely destabilizing the complex through a buried aspartate side chain. Notably, G12D peptides adopt two registers, a 9-mer and a 10-mer, that diverge sharply in structure and immunogenicity. The 10-mer forms a compact, stable pMHC with a TCR-accessible surface, while the 9-mer adopts a bent conformation incompatible with recognition. Molecular dynamics and NMR titration confirm the superior stability and binding affinity of the 10-mer. These results highlight how peptide length and conformation critically shape immune visibility, offering mechanistic insight for optimizing TCR-T therapies against elusive neoantigens like KRAS G12D.


  • Organizational Affiliation
    • Department of Anesthesiology, Putuo People's Hospital, School of Medicine, Tongji University, Shanghai, China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
HLA class I histocompatibility antigen, A alpha chain
A, D, G, J
276Homo sapiensMutation(s): 3
Gene Names: HLA-AHLAA
UniProt & NIH Common Fund Data Resources
Find proteins for P04439 (Homo sapiens)
Go to UniProtKB:  P04439
PHAROS:  P04439
GTEx:  ENSG00000206503
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP04439-2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

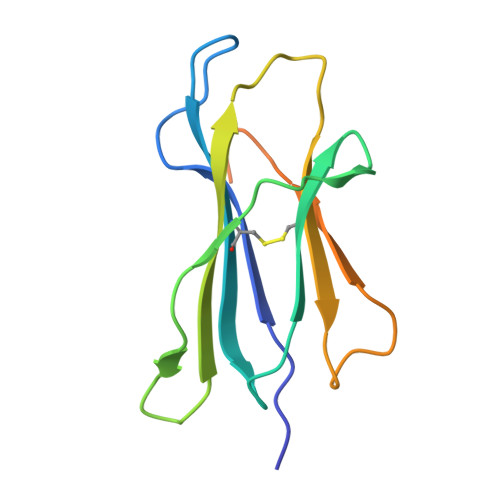

Beta-2-microglobulin
B, E, H, K
122Homo sapiensMutation(s): 0
Gene Names: B2MCDABP0092HDCMA22P
UniProt & NIH Common Fund Data Resources
Find proteins for P61769 (Homo sapiens)
Explore P61769
Go to UniProtKB:  P61769
PHAROS:  P61769
GTEx:  ENSG00000166710
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61769
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

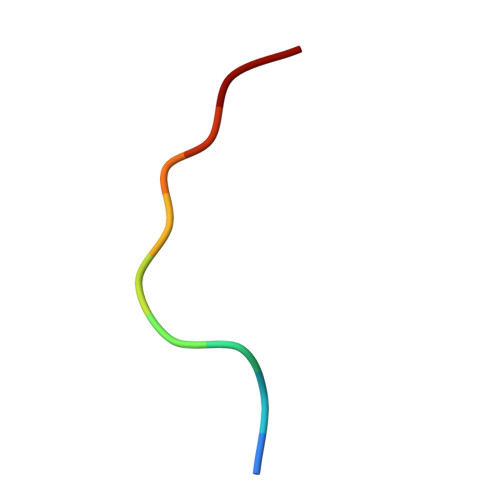

VAL-VAL-VAL-GLY-ALA-ALA-GLY-VAL-GLY-LYS
C, F, I, L
10Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.80 Å
  • R-Value Free:  0.267 (Depositor), 0.267 (DCC)
  • R-Value Work:  0.247 (Depositor), 0.247 (DCC)
  • R-Value Observed: 0.248 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 118.875α = 90
b = 121.573β = 90
c = 132.587γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
XDSdata reduction
PHASERphasing
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China--

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-24
    Type: Initial release
