3R5R | pdb_00003r5r

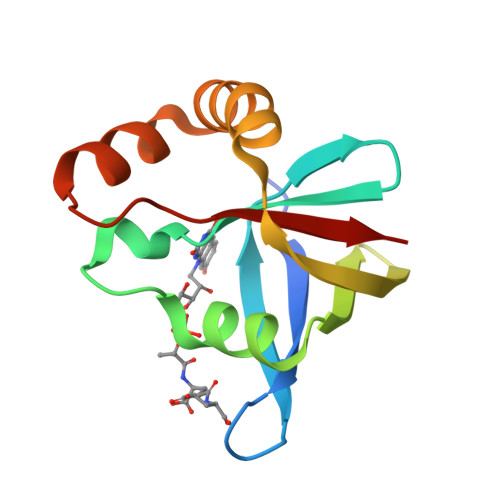

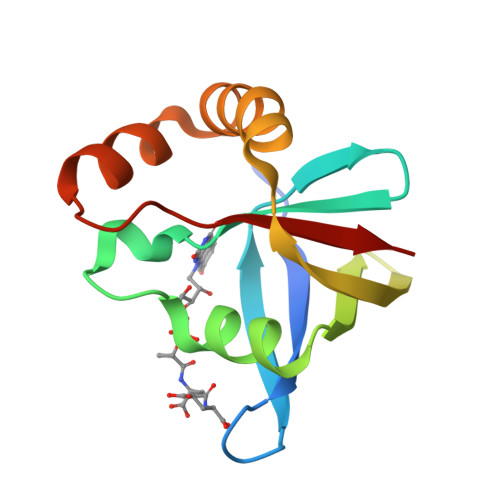

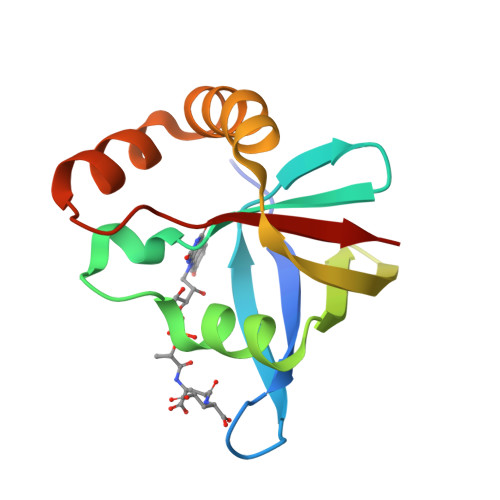

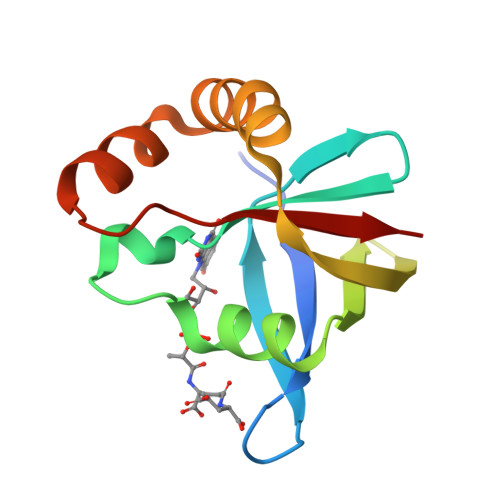

Structure of Ddn, the Deazaflavin-dependent nitroreductase from Mycobacterium tuberculosis involved in bioreductive activation of PA-824, with co-factor F420


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free:
    0.263 (Depositor), 0.260 (DCC)
  • R-Value Work:
    0.227 (Depositor), 0.230 (DCC)
  • R-Value Observed:
    0.229 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted F42Click on this verticalbar to view details

This is version 1.3 of the entry. See complete history


Literature

Structure of Ddn, the deazaflavin-dependent nitroreductase from Mycobacterium tuberculosis involved in bioreductive activation of PA-824.

Cellitti, S.E.Shaffer, J.Jones, D.H.Mukherjee, T.Gurumurthy, M.Bursulaya, B.Boshoff, H.I.Choi, I.Nayyar, A.Lee, Y.S.Cherian, J.Niyomrattanakit, P.Dick, T.Manjunatha, U.H.Barry, C.E.Spraggon, G.Geierstanger, B.H.

(2012) Structure 20: 101-112

  • DOI: https://doi.org/10.1016/j.str.2011.11.001
  • Primary Citation of Related Structures:
    3R5L, 3R5P, 3R5R, 3R5W, 3R5Y, 3R5Z

  • PubMed Abstract:

    Tuberculosis continues to be a global health threat, making bicyclic nitroimidazoles an important new class of therapeutics. A deazaflavin-dependent nitroreductase (Ddn) from Mycobacterium tuberculosis catalyzes the reduction of nitroimidazoles such as PA-824, resulting in intracellular release of lethal reactive nitrogen species. The N-terminal 30 residues of Ddn are functionally important but are flexible or access multiple conformations, preventing structural characterization of the full-length, enzymatically active enzyme. Several structures were determined of a truncated, inactive Ddn protein core with and without bound F(420) deazaflavin coenzyme as well as of a catalytically competent homolog from Nocardia farcinica. Mutagenesis studies based on these structures identified residues important for binding of F(420) and PA-824. The proposed orientation of the tail of PA-824 toward the N terminus of Ddn is consistent with current structure-activity relationship data.


  • Organizational Affiliation

    Genomics Institute of the Novartis Research Foundation, 10675 John Jay Hopkins Drive, San Diego, CA 92121-1125, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Deazaflavin-dependent nitroreductase
A, B, C, D, E
112Mycobacterium tuberculosisMutation(s): 0
Gene Names: ddnMT3651Rv3547
EC: 1 (PDB Primary Data), 1.1.98 (UniProt)
UniProt
Find proteins for P9WP15 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv))
Explore P9WP15
Go to UniProtKB:  P9WP15
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WP15
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free:  0.263 (Depositor), 0.260 (DCC)
  • R-Value Work:  0.227 (Depositor), 0.230 (DCC)
  • R-Value Observed: 0.229 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 146.947α = 90
b = 91.715β = 119.53
c = 86.499γ = 90
Software Package:
Software NamePurpose
DENZOdata reduction
SCALEPACKdata scaling
PHASERphasing
PHENIXrefinement
PDB_EXTRACTdata extraction
BOSdata collection
HKL-2000data reduction
HKL-2000data scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted F42Click on this verticalbar to view details

Entry History

Revision History  (Full details and data files)

  • Version 1.0: 2012-01-18
    Type: Initial release
  • Version 1.1: 2012-03-21
    Changes: Database references
  • Version 1.2: 2017-11-08
    Changes: Refinement description
  • Version 1.3: 2023-09-13
    Changes: Data collection, Database references, Derived calculations, Refinement description
