3UN8

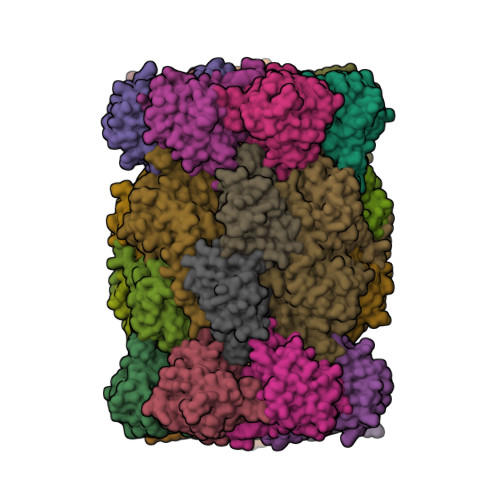

Yeast 20S proteasome in complex with PR-957 (epoxide)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.70 Å
  • R-Value Free: 0.240
  • R-Value Work: 0.217
  • R-Value Observed: 0.218

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Immuno- and constitutive proteasome crystal structures reveal differences in substrate and inhibitor specificity.

Huber, E.M.Basler, M.Schwab, R.Heinemeyer, W.Kirk, C.J.Groettrup, M.Groll, M.

(2012) Cell 148: 727-738

  • DOI: https://doi.org/10.1016/j.cell.2011.12.030
  • Primary Citation of Related Structures:
    3UN4, 3UN8, 3UNB, 3UNE, 3UNF, 3UNH

  • PubMed Abstract:

    Constitutive proteasomes and immunoproteasomes shape the peptide repertoire presented by major histocompatibility complex class I (MHC-I) molecules by harboring different sets of catalytically active subunits. Here, we present the crystal structures of constitutive proteasomes and immunoproteasomes from mouse in the presence and absence of the epoxyketone inhibitor PR-957 (ONX 0914) at 2.9 Å resolution. Based on our X-ray data, we propose a unique catalytic feature for the immunoproteasome subunit β5i/LMP7. Comparison of ligand-free and ligand-bound proteasomes reveals conformational changes in the S1 pocket of β5c/X but not β5i, thereby explaining the selectivity of PR-957 for β5i. Time-resolved structures of yeast proteasome:PR-957 complexes indicate that ligand docking to the active site occurs only via the reactive head group and the P1 side chain. Together, our results support structure-guided design of inhibitory lead structures selective for immunoproteasomes that are linked to cytokine production and diseases like cancer and autoimmune disorders.


  • Organizational Affiliation

    Center for Integrated Protein Science at the Department Chemie, Lehrstuhl für Biochemie, Technische Universität München, Garching D-85747, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component Y7
A, O
250Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P23639 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P23639
Go to UniProtKB:  P23639
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP23639
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component Y13
B, P
258Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P23638 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P23638
Go to UniProtKB:  P23638
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP23638
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component PRE6
C, Q
254Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P40303 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P40303
Go to UniProtKB:  P40303
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40303
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component PUP2
D, R
260Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P32379 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32379
Go to UniProtKB:  P32379
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32379
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component PRE5
E, S
234Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P40302 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P40302
Go to UniProtKB:  P40302
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40302
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component C1
F, T
288Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P21242 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P21242
Go to UniProtKB:  P21242
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP21242
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component C7-alpha
G, U
252Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P21243 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P21243
Go to UniProtKB:  P21243
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP21243
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component PUP1
H, V
232Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P25043 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P25043
Go to UniProtKB:  P25043
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25043
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component PUP3
I, W
205Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P25451 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P25451
Go to UniProtKB:  P25451
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25451
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component C11
J, X
198Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P22141 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P22141
Go to UniProtKB:  P22141
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP22141
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component PRE2
K, Y
212Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P30656 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P30656
Go to UniProtKB:  P30656
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP30656
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component C5
L, Z
222Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P23724 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P23724
Go to UniProtKB:  P23724
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP23724
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component PRE4AA [auth a],
M
233Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P30657 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P30657
Go to UniProtKB:  P30657
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP30657
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage
Proteasome component PRE3BA [auth b],
N
196Saccharomyces cerevisiae S288CMutation(s): 0
EC: 3.4.25.1
UniProt
Find proteins for P38624 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P38624
Go to UniProtKB:  P38624
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP38624
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.70 Å
  • R-Value Free: 0.240
  • R-Value Work: 0.217
  • R-Value Observed: 0.218
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 135.42α = 90
b = 300.42β = 112.83
c = 143.93γ = 90
Software Package:
Software NamePurpose
XDSdata scaling
REFMACrefinement
XDSdata reduction
XSCALEdata scaling
REFMACphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2012-02-29
    Type: Initial release
  • Version 1.1: 2012-03-28
    Changes: Database references
  • Version 1.2: 2023-09-13
    Changes: Data collection, Database references, Derived calculations, Refinement description
